Erico DSD1301BR150 - GROUNDING - DIVERTER, SURGE, 150V, 30KA
Regular price
$183.15
Unit price
Brand: Erico
|
SKU:
9830213
Regular price
$183.15
Unit price
Description
Description

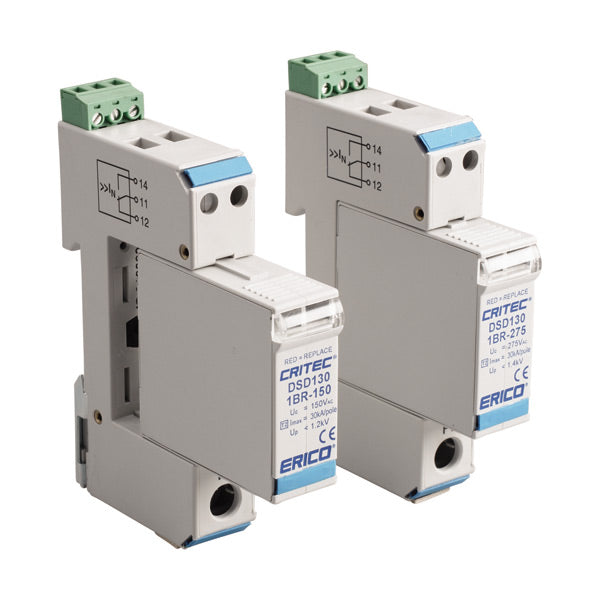

Erico DSD1301BR150 - GROUNDING - DIVERTER, SURGE, 150V, 30KA
Features
- 15kA 8/20?s surge rating per mode
- Three modes of protection: L-N, L-PE and N-PE
- Indication flags and voltage-free contacts provide remote status monitoring
Specifications
Specifications
Image 1
| Click image to enlarge. |
|---|
Image 2
| Click image to enlarge. |
|---|
Specifications
| Part Number | DSD1301BR150 |
|---|---|
| Nominal System Voltage (Un) | 110 - 120 V |
| Max Continuous Operating Voltage (Uc) | 150 VAC, 200 VDC |
| Nominal Discharge Current (In), Per Mode | 8 kA 8/20 ?s |
| Max Discharge Current (Imax), Per Mode | 15 kA 8/20 ?s |
| Voltage Protection Level (Up), L-N @ In | 1,200 V |
| Voltage Protection Level (Up), L/N-PE @ In | 600 V |
| Distribution System | TN-CTN-C-STN-S |
| Frequency | 0 – 100 Hz |
| Protection Modes | L-N, N-PE, L-PE |
| Short Circuit Current Rating (SCCR) | 25 kA |
| Technology | MOV with thermal disconnect |
| Connection, PE Solid | #2 Max |
| Connection, PE Stranded | #4 Max |
| Connection, Solid | #10 Max |
| Connection, Stranded | #11 Max |
| Mounting | 35 mm top hat DIN rail |
| Enclosure Material | UL® 94V-0 Thermoplastic |
| Enclosure Rating | IP 20NEMA®-1 |
| Status Indication | Mechanical flag |
| Terminal Torque | 31 in lb Max |
| Terminal Torque, Ground | 22 in lb Max |
| Remote Contacts | Yes |
| Temperature | -40 to 176 °F |
| Module Width | 1 M |
| Depth (D) | 2.68" |
| Height (H) | 3.54" |
| Width (W) | 0.71" |
| Unit Weight | 0.26 lb |
| Complies With | ANSI®/IEEE® C62.41.2-2002 Cat A, Cat BIEC® 61643-1 Class II |
| Standard Packaging Quantity | 1 pc |
| UPC | 78285647252 |
| EAN-13 | 8711893014464 |
