Brand: Erico
|
SKU:
9832015

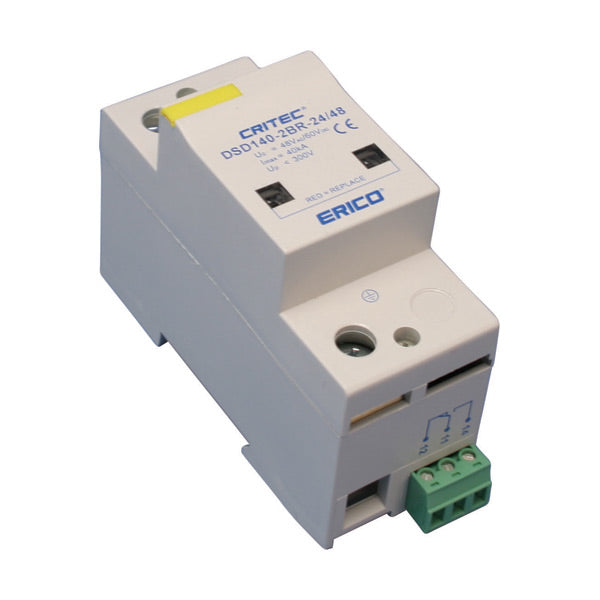

Erico DSD1402BR24/48 - GROUNDING - Surge Diverter, 24/48 DC
Regular price
$410.63
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Erico DSD1402BR24/48 - GROUNDING - Surge Diverter, 24/48 DC
Regular price
$410.63
Unit price
Description
Description
Erico DSD1402BR24/48 - GROUNDING - Surge Diverter, 24/48 DC
Features
- 40 kA 8/20?s surge rating per mode, 80 kA per line, 120 kA total per pair
- Suitable for exposed DC wiring
- Indication flag provides clear visual indication of life status
- Suitable for both 24 VDC and 48 VDC distribution systems
Specifications
Specifications
Image 1
| Click image to enlarge. |
|---|
Image 2
| Click image to enlarge. |
|---|
Specifications
| Part Number | DSD1402BR24/48 |
|---|---|
| Nominal System Voltage (Un) | 0 - 48 VDC |
| Max Continuous Operating Voltage (Uc) | 60 VAC, 60 VDC |
| Max Discharge Current (Imax), Per Mode | 40 kA 8/20 ?s |
| Nominal Discharge Current (In) | 20 kA 8/20 ?s |
| Voltage Protection Level (Up), + to - @ In | 600 V |
| Voltage Protection Level (Up), L-N | 280 V @ 3 kA |
| Frequency | 0 – 60 Hz |
| Protection Modes | Common, Differential |
| Short Circuit Current Rating (SCCR) | 25 kA |
| Technology | MOV with thermal disconnect |
| Connection, Solid | #2 Max |
| Connection, Stranded | #4 Max |
| Mounting | 35 mm top hat DIN rail |
| Enclosure Material | UL® 94V-0 Thermoplastic |
| Enclosure Rating | IP 20NEMA®-1 |
| Status Indication | Mechanical flag |
| Terminal Torque | 31 ft lb Max |
| Remote Contacts | Yes |
| Temperature | -40 to 176 °F |
| Module Width | 2 M |
| Depth (D) | 2.68" |
| Height (H) | 3.54" |
| Width (W) | 1.42" |
| Unit Weight | 0.45 lb |
| Complies With | ANSI®/IEEE® C62.41.2-2002 Cat A, Cat B, Cat C; ANSI®/IEEE® C62.41.2-2002 Scenario II, Exposure 2, 20 kA 8/20 ?s, 2 kA 10/350 ?sIEC® 61643-1 Class II |
| Certifications | CE, DSD140 |
| Standard Packaging Quantity | 1 pc |
| UPC | 78285652474 |
| EAN-13 | 8711893029802 |
Documents and Downloads
Documents and Downloads
- Rail Solutions - Expertly Engineered. Global Capabilities
- Wind Power Solutions
- Surge Protection Solutions
- Technical Note TN CR 001, Why Install Surge Protection
- Technical Note TN CR 002, The need for co-ordinated protection
- Technical Note TN CR 003, Where to install SPD's for AC powered electronic equipment
- Technical Note TN CR 006, SPDs and the Benefits of Filtering
- Technical Note TN CR 007, - What are clamping voltages, suppressed voltage ratings and let-throughs
- Technical Note TN CR 009, What national standards are applicable to SPD's
