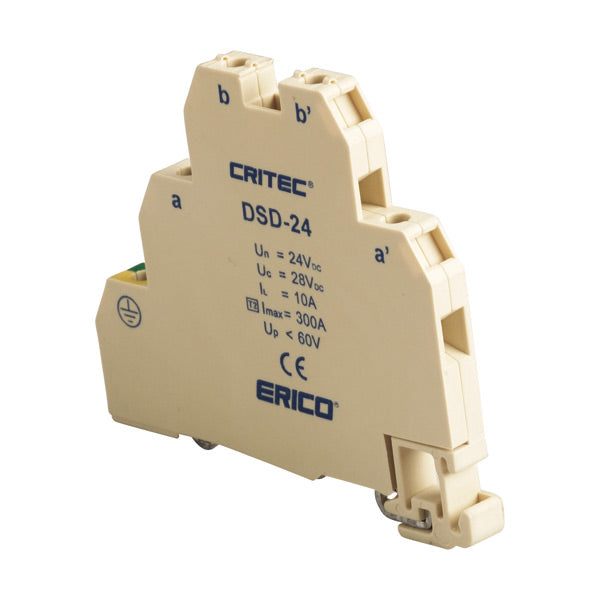

Erico DSD24 - GROUNDING - Surge Diverter, 12/24 DC
Regular price
$50.46
Unit price
Brand: Erico
|
SKU:
9832017
Regular price
$50.46
Unit price
Description
Description
Erico DSD24 - GROUNDING - Surge Diverter, 12/24 DC
Features
- Protects data transmission circuits or low voltage alarm cicuits such as fire or security
- Bi-directional protection for two lines
Specifications
Specifications
| Click image to enlarge. |
|---|
Specifications
| Part Number | DSD24 |
|---|---|
| Nominal System Voltage (Un) | 0 - 24 VDC |
| Max Continuous Operating Voltage (Uc) | 28 VDC |
| Max Discharge Current (Imax) | 300 A 8/20 ?s |
| Rated Load Current (IL) | 10 A |
| Frequency | 0 – 3 MHz |
| Connection, Solid | #13 Max |
| Enclosure Material | UL® 94V-0 Thermoplastic |
| Enclosure Rating | IP 20NEMA®-1 |
| Remote Contacts | No |
| Temperature | -40 to 176 °F |
| Depth (D) | 2.44" |
| Height (H) | 2.68" |
| Width (W) | 0.24" |
| Unit Weight | 0.15 lb |
| Complies With | IEC® 61643-1 Class III |
| Standard Packaging Quantity | 1 pc |
| UPC | 78285647042 |
| EAN-13 | 8711893014198 |
Documents and Downloads
Documents and Downloads
- Rail Solutions - Expertly Engineered. Global Capabilities
- Wind Power Solutions
- DIN Surge Diverter, DSD-12 & DSD-24 Installation Instructions
- Technical Note TN CR 001, Why Install Surge Protection
- Technical Note TN CR 002, The need for co-ordinated protection
- Technical Note TN CR 003, Where to install SPD's for AC powered electronic equipment
- Technical Note TN CR 006, SPDs and the Benefits of Filtering
- Technical Note TN CR 007, - What are clamping voltages, suppressed voltage ratings and let-throughs
- Technical Note TN CR 009, What national standards are applicable to SPD's
