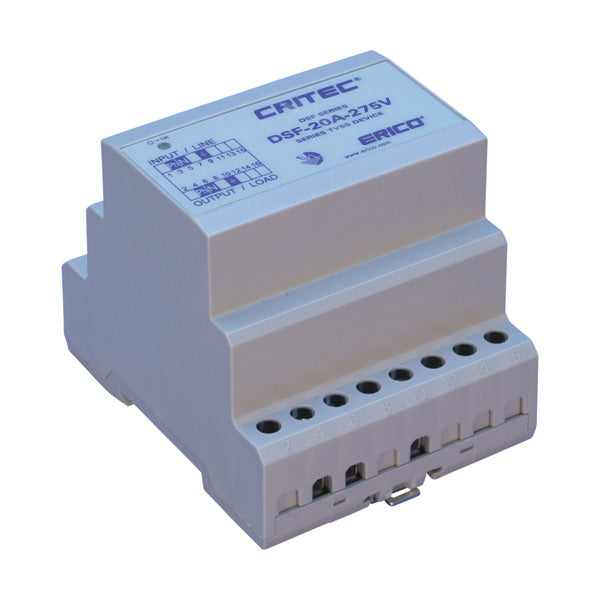

Erico DSF20A150V - GROUNDING - DIN Rail Surge Filter
Regular price
$597.74
Unit price
Brand: Erico
|
SKU:
9832088
Regular price
$597.74
Unit price
Description
Description
Erico DSF20A150V - GROUNDING - DIN Rail Surge Filter
Features
- In-line series protection
- EMI/RFI noise filtering protects against industrial electrical noise
- Compact design fits into motor control and equipment panels
- Three modes of protection: L-N, L-PE and N-PE
- DIN rail mount provides simple installation
- LED power indicator
Specifications
Specifications
| Click image to enlarge. |
|---|
Specifications
| Part Number | DSF20A150V |
|---|---|
| Rated Load Current (IL) | 20 A |
| Nominal System Voltage (Un) | 110 - 120 V |
| Max Continuous Operating Voltage (Uc) | 150 VAC |
| Frequency | 50 – 60 Hz |
| Max Discharge Current (Imax) | 15 kA 8/20 ?s L-N, 15 kA 8/20 ?s L-PE, 25 kA 8/20 ?s N-PE |
| Voltage Protection Level (Up) | 400 V @ 3 kA |
| Back-Up Overcurrent Protection | 20 A |
| Filtering | -3 dB @ 62 kHz |
| Distribution System | 1Ph 2W+G |
| Protection Modes | All modes protected |
| Connection, Solid | #18 – #10 |
| Connection, Stranded | #18 – #10 |
| Mounting | 35 mm top hat DIN rail |
| Status Indication | LED |
| Enclosure Material | UL® 94V-0 Thermoplastic |
| Enclosure Rating | IP 20NEMA®-1 |
| Temperature | -31 to 131 °F |
| Module Width | 4 M |
| Depth (D) | 2.68" |
| Height (H) | 3.54" |
| Width (W) | 2.83" |
| Unit Weight | 1.54 lb |
| Complies With | ANSI®/IEEE® C62.41.2-2002 Cat A, Cat B |
| Certifications | CEC-Tick |
| Standard Packaging Quantity | 1 pc |
| UPC | 78285667063 |
Documents and Downloads
Documents and Downloads
- Rail Solutions - Expertly Engineered. Global Capabilities
- Wind Power Solutions
- DINLINE Surge Filter DSF-6A, 10A, 20A Installation Instructions
- TDS-DINLINE Surge Suppressor Installation Instructions
- Technical Note TN CR 001, Why Install Surge Protection
- Technical Note TN CR 002, The need for co-ordinated protection
- Technical Note TN CR 003, Where to install SPD's for AC powered electronic equipment
- Technical Note TN CR 006, SPDs and the Benefits of Filtering
- Technical Note TN CR 007, - What are clamping voltages, suppressed voltage ratings and let-throughs
