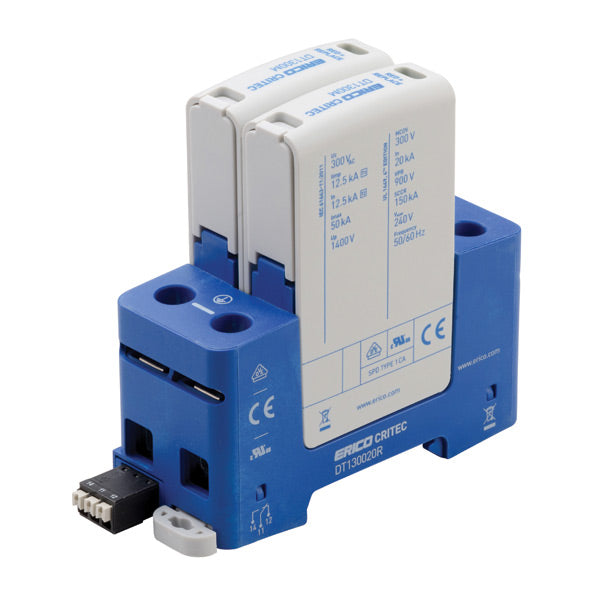

Erico DT130020R - GROUNDING - DT1 DIN Rail Surge Protection Class I+II 12.5 kA, 2+0 Mode
Regular price
$497.31
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Erico DT130020R - GROUNDING - DT1 DIN Rail Surge Protection Class I...
Regular price
$497.31
Unit price
Description
Description
DT1 DIN Rail Surge Protection Class I+II 12.5 kA, 2+0 Mode
Features
- Compact, yet high surge rated pluggable design, using minimum DIN rail width
- External back-up fuse is not required up to 315 A (IEC only)
- Retaining clip ensures enhanced vibration and shock resistance performance
- Red/Green status indication and change-over contacts standard for remote monitoring
Specifications
Specifications
| Click image to enlarge. |
|---|
Specifications
| Part Number | DT130020R |
|---|---|
| Nominal System Voltage (Un) | 240 V |
| Max Continuous Operating Voltage (Uc) | 300 V |
| Nominal Discharge Current (In), IEC | 20 kA 8/20 ?s |
| Max Discharge Current (Imax), IEC | 50 kA 8/20 ?s |
| Impulse Current (Iimp) | 12.5 kA 10/350 ?s |
| Voltage Protection Level (Up) | 1,400 V |
| Response Time | 25 ns Max |
| Back-Up Fuse @ Isccr | 250 A @ 50 kA, 315 A @ 25 kA |
| Frequency | 50 – 60 Hz |
| Short Circuit Current Rating (Isccr) | 25 kA, 50 kA |
| Protection Modes | L-N, N-PE |
| Temporary Over Voltage 120 min (Ut/mode) | 442 V Safe Fail |
| Temporary Over Voltage Withstand 5 s (Ut) | 337 V |
| Voltage Protection Rating (VPR) | 900 V |
| Nominal Discharge Current (In), UL | 20 kA 8/20 ?s |
| Replacement Module | DT1300M |
| Short Circuit Current Rating (SCCR) | 150 kA |
| Technology | Thermal Disconnect |
| Connection, Solid | #2 Max |
| Connection, Stranded | #4 Max |
| Torque (TQ) | 3.32 ft lb |
| Humidity | 5 – 95 % RH |
| Temperature | -31 to 185 °F |
| Enclosure Material | UL® 94V-0 Thermoplastic |
| Enclosure Rating | IP 20 |
| Mounting | 35 mm top hat DIN rail |
| Remote Contact Switching Capacity | 0.5 A @ 12 VDC, 0.5 A @ 24 VDC, 0.5 A @ 48 VDC, 1.0 A @ 125 VAC, 1.0 A @ 250 VAC |
| Remote Contacts | Yes |
| Status Indication | Mechanical flag |
| Depth (D) | 3.35" |
| Height (H) | 3.54" |
| Width (W) | 1.42" |
| Unit Weight | 0.779 lb |
| Certification Details | UL® 1449 Edition 4 Type 1CA |
| Complies With | EN 61643-11 Type 1, Type 2, IEC® 61643-11 Class I, Class II |
| Certifications | CE, ERICO DT1 Series, cURus, VDE |
| Standard Packaging Quantity | 1 pc |
| UPC | 78285693830 |
| EAN-13 | 782856938309 |
