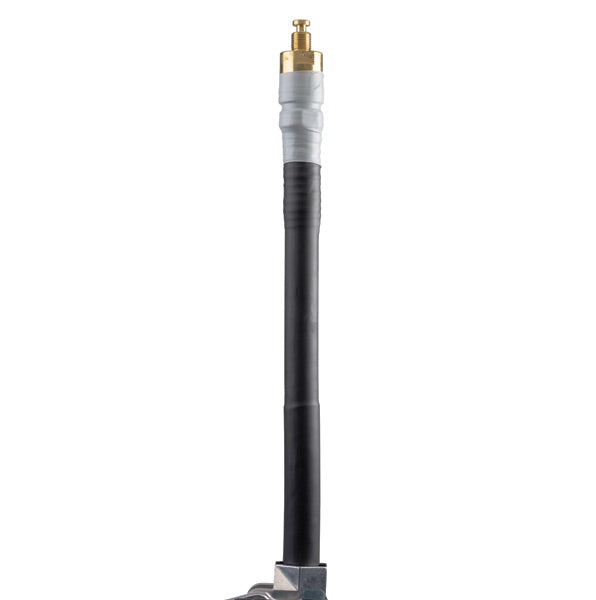

Erico ERICORE080T - GROUNDING - Ericore Terminated Conductor
Regular price
$28,437.35
Unit price
Brand: Erico
|
SKU:
9828334
Regular price
$28,437.35
Unit price
Description
Description
nVent ERICO Ericore Terminated Conductor
Features
- Low-inductance, low-impedance cable designed to minimize voltage build-up due to lightning impulses
- Multiple insulated layers of conductor reduce the potential of side flashing
- Upper termination provides an insulated connection from terminal to nVent ERICO Ericore to properly transition the lightning strike
- Requires lower termination kit
Specifications
Specifications
| Click image to enlarge. |
|---|
Specifications
| Part Number | ERICORE080T |
|---|---|
| Length (L) | 80 m |
| Capacitance | 0.75 nF |
| Diameter (Ø) | 1.42" |
| Impedance | 12 ? Max |
| Inductance | 37 nH |
| Resistance (Rdc) | 0.5 m?/m |
| Resistance (Rimp) | 6 m?/m |
| Upper Termination Voltage Withstand | 250 kV |
| Unit Weight | 211.835 lb |
| Standard Packaging Quantity | 80 m |
| UPC | 78285673124 |
