Brand: Erico
|
SKU:
9840075

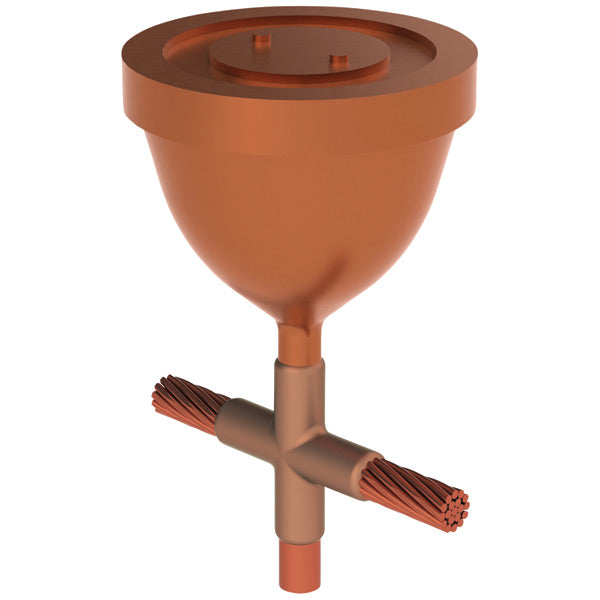

Erico GBJGT181VR2M - GROUNDING - CADWELD MOLD, Cable to Ground Rod Splice/Grounding Receptacle
Regular price
$765.29
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Erico GBJGT181VR2M - GROUNDING - CADWELD MOLD, Cable to Ground Rod ...
Regular price
$765.29
Unit price
Description
Description
nVent ERICO Cadweld graphite molds are designed and engineered for thousands of connection styles and conductor combinations.
Features
- Forms a permanent, low resistance connection
- Provides a molecular bond
- nVent ERICO Cadweld Exothermic Connections are rated with the same current capacity as the conductor
- Portable installation equipment with no external source of power required
- Installers can be easily trained to make nVent ERICO Cadweld Exothermic Connections
- Connections can be visually inspected
Specifications
Specifications
| Click image to enlarge. |
|---|
Specifications
| Part Number | GBJGT181VR2M |
|---|---|
| Ground Rod Type | Copper-bonded |
| Mold Family | GB/GT |
| Ground Rod Diameter, Nominal | 3/4" |
| Ground Rod Diameter, Actual | 0.682" |
| Conductor Size | #2 Concentric |
| Conductor Outer Diameter, Nominal | 0.292" |
| Ground Plate/Grounding Receptacle | B166 Grounding Receptacle |
| Split Crucible | No |
| Wear Plates | No |
| Mold Only | Yes |
| Welding Material | 200 x 2 or 200PLUSF20, Sold Separately |
| Handle Clamp | L159, Sold Separately |
| Frame | M2412CX, Sold Separately |
| Price Key | J |
| Ease of Use | Preferred |
| Certifications | cULus |
| Standard Packaging Quantity | 1 pc |
| UPC | 78285677321 |
