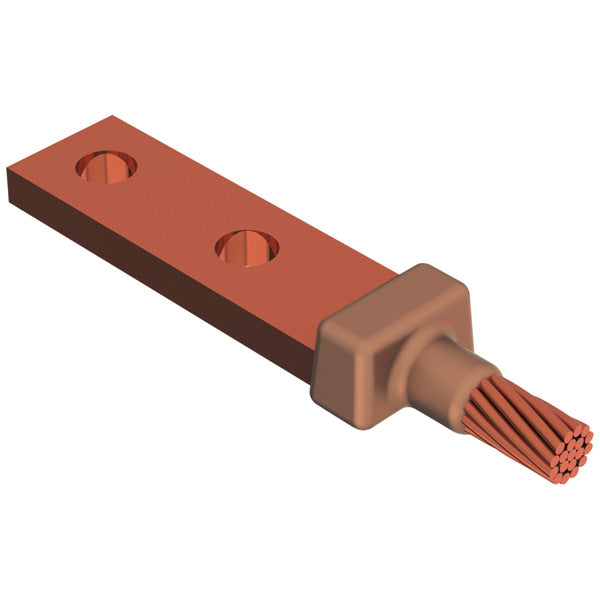

Erico GLPCC001TC - GROUNDING - CADWELD MOLD, Cable to Lug or Busbar
Regular price
$329.12
Unit price
Brand: Erico
|
SKU:
9838429
Regular price
$329.12
Unit price
Description
Description
nVent ERICO Cadweld graphite molds are designed and engineered for thousands of connection styles and conductor combinations.
Features
- Forms a permanent, low resistance connection
- Provides a molecular bond
- nVent ERICO Cadweld Exothermic Connections are rated with the same current capacity as the conductor
- Portable installation equipment with no external source of power required
- Installers can be easily trained to make nVent ERICO Cadweld Exothermic Connections
- Connections can be visually inspected
- Mold Families LA and LE can be used with straight or offset lugs
Specifications
Specifications
| Click image to enlarge. |
|---|
Specifications
| Part Number | GLPCC001TC |
|---|---|
| Mold Family | GL |
| Lug/Busbar Size | 1/8" x 5/8" |
| Conductor Size | #2 Solid |
| Conductor Outer Diameter, Nominal | 0.257" |
| Split Crucible | No |
| Wear Plates | No |
| Mold Only | No |
| Welding Material | 25 or 25PLUSF20, Sold Separately |
| Handle Clamp | Mini EZ Attached |
| Frame | Not Required |
| Price Key | P |
| Ease of Use | Preferred |
| Standard Packaging Quantity | 1 pc |
| UPC | 78285634144 |
| EAN-13 | 8711893151589 |
