Brand: Erico
|
SKU:
9834402

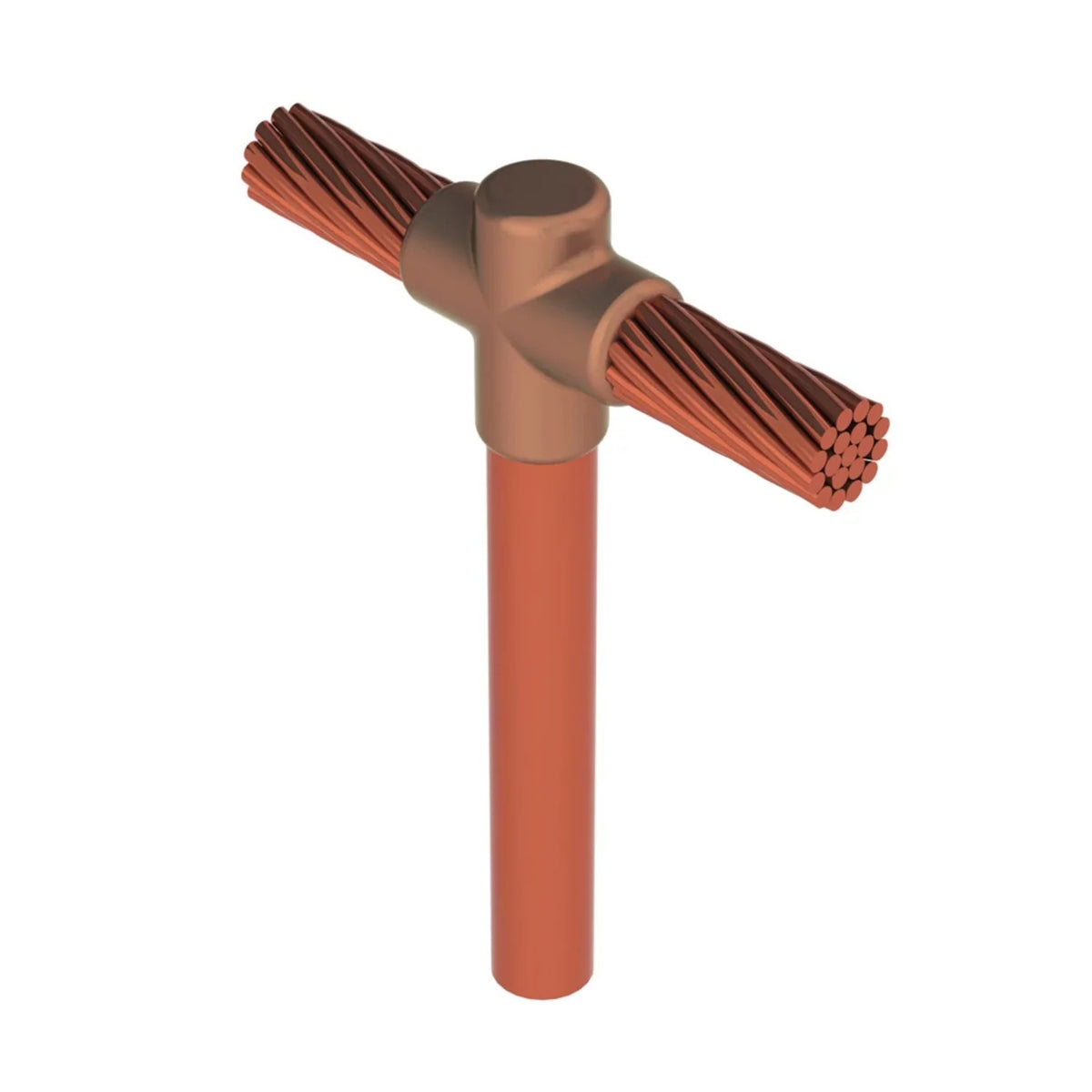

Erico GTC161T | Cable to Ground Rod, GT, 5/8" Copper-bonded Rod to #2 Solid
Regular price
$300.08
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Erico GTC161T | Cable to Ground Rod, GT, 5/8" Copper-bonded Ro...
Regular price
$300.08
Unit price
Description
Description
Erico GTC161T | Cable to Ground Rod, GT, 5/8" Copper-bonded Rod to #2 Solid.
nVent ERICO Cadweld graphite molds are designed and engineered for thousands of connection styles and conductor combinations.
Erico - GTC161T - Features
- Forms a permanent, low resistance connection
- Provides a molecular bond
- nVent ERICO Cadweld Exothermic Connections are rated with the same current capacity as the conductor
- Portable installation equipment with no external source of power required
- Installers can be easily trained to make nVent ERICO Cadweld Exothermic Connections
- Connections can be visually inspected
Specifications
Specifications
Erico - GTC161T - Specifications
| Mold Family | GT |
|---|---|
| Ground Rod Type | Copper-bonded |
| Ground Rod Diameter, Nominal | 5/8" |
| Ground Rod Diameter, Actual (Ø) | 0.56" |
| Conductor Size | #2 Solid |
| Conductor Outer Diameter, Nominal | 0.26" |
| Kit | No |
| Mold Split | Vertical |
| Split Crucible | No |
| Wear Plates | No |
| Mold Only | No |
| Welding Material | 90 or 90PLUSF20, Sold Separately |
| Handle Clamp | L160, Sold Separately |
| Price Key | C |
| Ease of Use | Preferred |
| UPC | 782856536543 |
| Packing Quantity | 1.0000 |
