Brand: Erico | SKU: 9832532

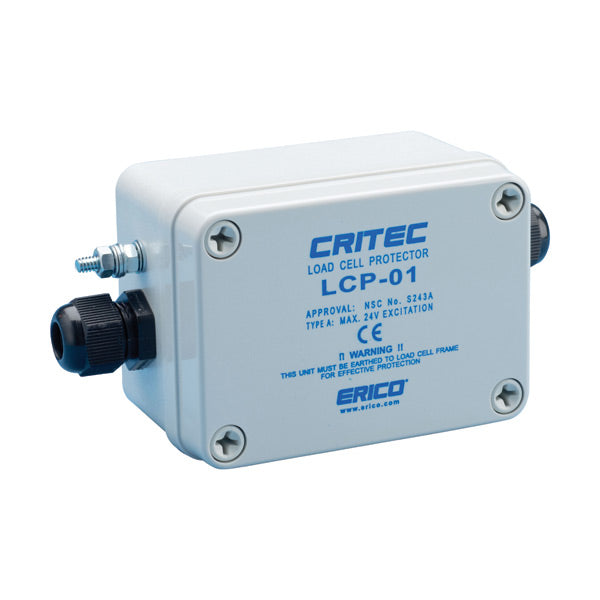

Erico LCP01A - GROUNDING - Load Cell Protector

$779.45

  • Low prices.

    Price match guarantee

  • In-House Experts.

    We know our products

  • Easy Returns.

    Quick & Hassle Free

  • Superior Selection.

    Extensive product catalog

Description
Erico LCP01A - GROUNDING - Load Cell Protector

Features

  • Six wires and shield protection works with four or six wire systems
  • Suitable for compression or tension cells
  • Low series impedance, loadcells do not need recalibration
  • NEMA®-12 (IP-55) rated, suitable for outdoor use
  • Helps protect against excitation over-voltage and prevent loadcell damage

Specifications

Image 1

Click image to enlarge.

Image 2

Click image to enlarge.

Specifications

Part NumberLCP01A
Max Discharge Current (Imax), Shield to Ground10 kA 8/20 ?s
Max Discharge Current (Imax), Signal to Shield0.3 kA 8/20 ?s
Voltage Protection Level (Up), Shield to Ground90 V
Voltage Protection Level (Up), Signal to Shield30 V
Voltage Protection Level (Up), Signal to Signal15 V
Loop Resistance0.3 ?
TechnologySilicon Avalanche Diode (SAD)
MaterialAcrylonitrile Butadiene Styrene
Enclosure RatingNEMA® 12 (IP55)
Depth (D)4.33"
Height (H)2.2"
Width (W)2.95"
Unit Weight0.55 lb
Temperature-40 to 176 °F
Standard Packaging Quantity1 pc
UPC78285644014
EAN-139321098000804
