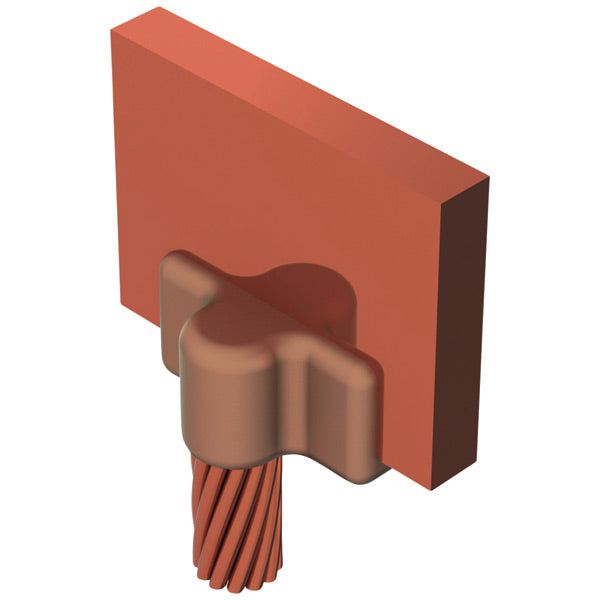

Erico LNEEM2L - GROUNDING - CADWELD MOLD, Cable to Lug or Busbar
Regular price
$666.66
Unit price
Brand: Erico
|
SKU:
9837891
Regular price
$666.66
Unit price
Description
Description
nVent ERICO Cadweld graphite molds are designed and engineered for thousands of connection styles and conductor combinations.
Features
- Forms a permanent, low resistance connection
- Provides a molecular bond
- nVent ERICO Cadweld Exothermic Connections are rated with the same current capacity as the conductor
- Portable installation equipment with no external source of power required
- Installers can be easily trained to make nVent ERICO Cadweld Exothermic Connections
- Connections can be visually inspected
- Mold Families LA and LE can be used with straight or offset lugs
Specifications
Specifications
| Click image to enlarge. |
|---|
Specifications
| Part Number | LNEEM2L |
|---|---|
| Mold Family | LN |
| Lug/Busbar Size | 1/4" x 4" |
| Conductor Size | 3/0 Concentric |
| Conductor Outer Diameter, Nominal | 0.47" |
| Split Crucible | No |
| Wear Plates | No |
| Mold Only | No |
| Welding Material | 200 or 200PLUSF20, Sold Separately |
| Handle Clamp | L160, Sold Separately |
| Frame | Attached |
| Price Key | E |
| Ease of Use | Most Difficult |
| Standard Packaging Quantity | 1 pc |
| UPC | 78285661239 |
Documents and Downloads
Documents and Downloads
- nVent ERICO Cadweld Welded Electrical Connections
- nVent ERICO Cadweld Permanent Grounding Connections meet the requirements of IEEE STD. 837-2014
- nVent ERICO Distribution Pole Solutions
- Your Trusted Source for Grounding & Bonding
- IP6548 Cable to Lug Horizontal Tap Perpendicular to Flange, Instruction Sheet IP6548_C
