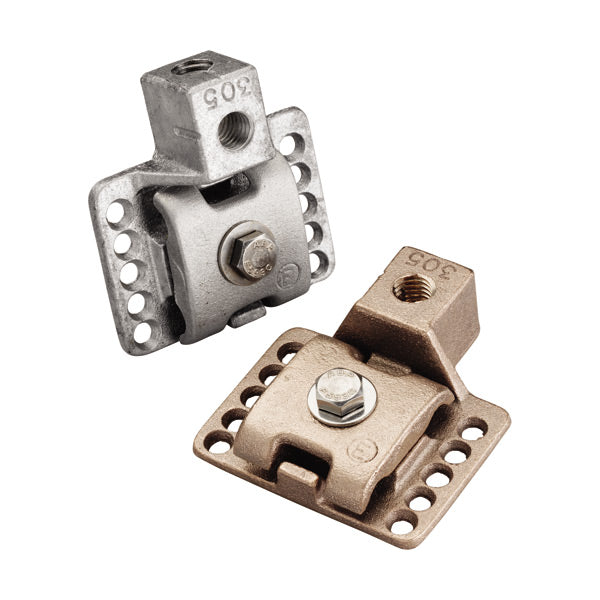

Erico LPC30512THRU - GROUNDING - BASE, CU, THRU HOLE, 1/2 IN
Regular price
$114.39
Unit price
Brand: Erico
|
SKU:
9829868
Regular price
$114.39
Unit price
Description
Description
Air Terminal Base, Imperial Thread
Features
- Install with adhesive or screw down fixings
- Mechanical connection recommended for vertical installation
- Positive single bolt tension for multi-directional cable clamping
Specifications
Specifications
Image 1
| Click image to enlarge. |
|---|
Image 2
| Click image to enlarge. |
|---|
Specifications
| Part Number | LPC30512THRU |
|---|---|
| Conductor Size, UL | Class 1 - Class 2 (4/0 Max) |
| Material | Copper |
| Finish | Bare |
| Thread Size (TS) | 1/2 UNC |
| Mounting | Horizontal or Vertical |
| Hole Size (HS) | 1/4" |
| Depth (D) | 2.9" |
| Height (H) | 1" |
| Width (W) | 3.07" |
| Unit Weight | 0.835 lb |
| Certifications | UL |
| Standard Packaging Quantity | 1 pc |
| UPC | 78285670384 |
