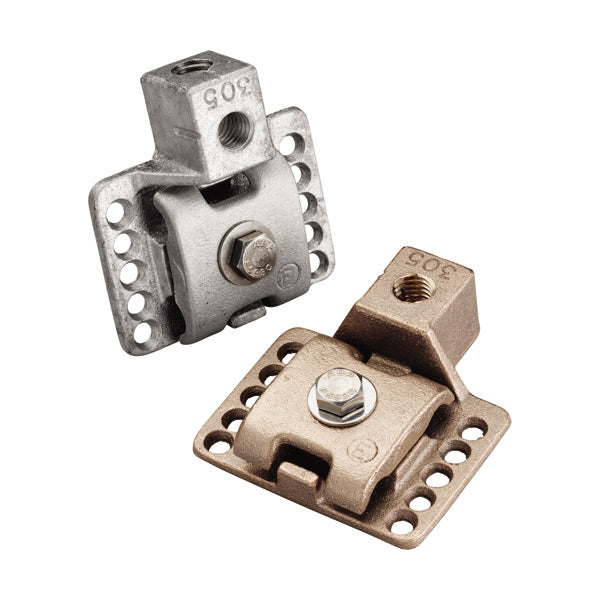

Erico LPC30558V - GROUNDING - BASE, CU, VERT MOUNT, 5/8
Regular price
$92.25
Unit price
Brand: Erico
|
SKU:
9831601
Regular price
$92.25
Unit price
Description
Description
Air Terminal Base, Imperial Thread
Features
- Install with adhesive or screw down fixings
- Mechanical connection recommended for vertical installation
- Positive single bolt tension for multi-directional cable clamping
Specifications
Specifications
Image 1
| Click image to enlarge. |
|---|
Image 2
| Click image to enlarge. |
|---|
Specifications
| Part Number | LPC30558V |
|---|---|
| Conductor Size, UL | Class 1 - Class 2 (4/0 Max) |
| Material | Copper |
| Finish | Bare |
| Thread Size (TS) | 5/8 UNC |
| Mounting | Vertical |
| Hole Size (HS) | 1/4" |
| Depth (D) | 2.9" |
| Height (H) | 1" |
| Width (W) | 3.07" |
| Unit Weight | 0.835 lb |
| Certifications | UL |
| Standard Packaging Quantity | 1 pc |
| UPC | 78285662244 |
| EAN-13 | 8711893128802 |
