Brand: Erico
|
SKU:
9837901

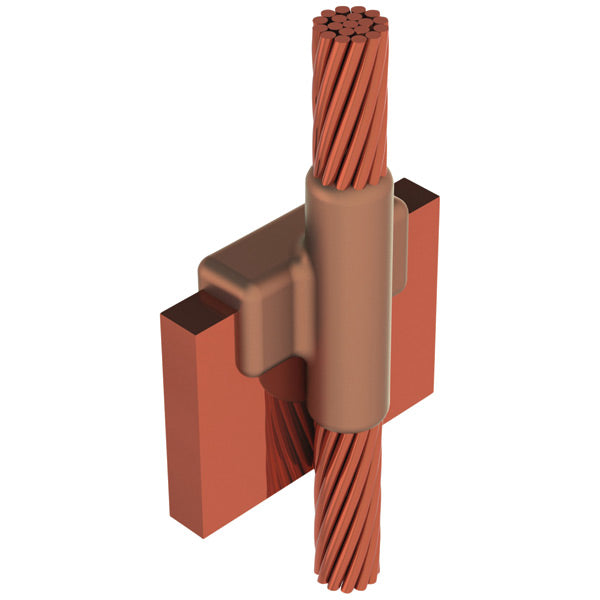

Erico LQJEH2C - GROUNDING - CADWELD MOLD, Cable to Lug or Busbar
Regular price
$1,203.20
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Erico LQJEH2C - GROUNDING - CADWELD MOLD, Cable to Lug or Busbar
Regular price
$1,203.20
Unit price
Description
Description
nVent ERICO Cadweld graphite molds are designed and engineered for thousands of connection styles and conductor combinations.
Features
- Forms a permanent, low resistance connection
- Provides a molecular bond
- nVent ERICO Cadweld Exothermic Connections are rated with the same current capacity as the conductor
- Portable installation equipment with no external source of power required
- Installers can be easily trained to make nVent ERICO Cadweld Exothermic Connections
- Connections can be visually inspected
- Mold Families LA and LE can be used with straight or offset lugs
Specifications
Specifications
| Click image to enlarge. |
|---|
Specifications
| Part Number | LQJEH2C |
|---|---|
| Mold Family | LQ |
| Lug/Busbar Size | 1/4" x 2" and wider |
| Conductor Size | 1/0 Concentric |
| Conductor Outer Diameter, Nominal | 0.373" |
| Split Crucible | No |
| Wear Plates | No |
| Mold Only | No |
| Welding Material | 200 x 2 or 400PLUSF20, Sold Separately |
| Handle Clamp | L159, Sold Separately |
| Frame | Attached |
| Price Key | J |
| Ease of Use | Easy |
| Certifications | cULus |
| Standard Packaging Quantity | 1 pc |
| UPC | 78285613267 |
Documents and Downloads
Documents and Downloads
- Grounding, Bonding, and nVent ERICO Cadweld Solutions Guide
- cUL KDER7.E220029
- UL KDER.E220029
- nVent ERICO Cadweld Welded Electrical Connections
- nVent ERICO Cadweld Permanent Grounding Connections meet the requirements of IEEE STD. 837-2014
- nVent ERICO Distribution Pole Solutions
- Your Trusted Source for Grounding & Bonding
- IP6548 Cable to Lug Horizontal Tap Perpendicular to Flange, Instruction Sheet IP6548_C
