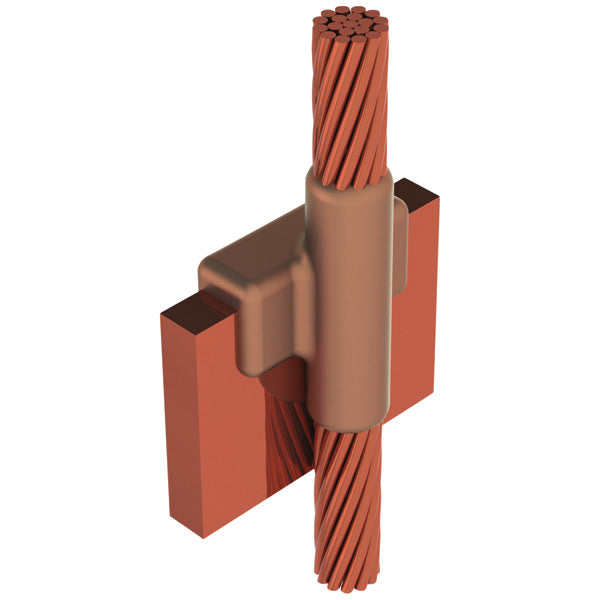

Erico LQJEH2VM - GROUNDING - CADWELD MOLD, Cable to Lug or Busbar
Regular price
$593.87
Unit price
Brand: Erico
|
SKU:
9837908
Regular price
$593.87
Unit price
Description
Description
nVent ERICO Cadweld graphite molds are designed and engineered for thousands of connection styles and conductor combinations.
Features
- Forms a permanent, low resistance connection
- Provides a molecular bond
- nVent ERICO Cadweld Exothermic Connections are rated with the same current capacity as the conductor
- Portable installation equipment with no external source of power required
- Installers can be easily trained to make nVent ERICO Cadweld Exothermic Connections
- Connections can be visually inspected
- Mold Families LA and LE can be used with straight or offset lugs
Specifications
Specifications
| Click image to enlarge. |
|---|
Specifications
| Part Number | LQJEH2VM |
|---|---|
| Mold Family | LQ |
| Lug/Busbar Size | 1/4" x 2" and wider |
| Conductor Size | 250 kcmil Concentric |
| Conductor Outer Diameter, Nominal | 0.575" |
| Split Crucible | No |
| Wear Plates | No |
| Mold Only | Yes |
| Welding Material | 500 or 500PLUSF20, Sold Separately |
| Handle Clamp | L160, Sold Separately |
| Frame | M2374AX, Sold Separately |
| Price Key | J |
| Ease of Use | Easy |
| Certifications | cULus |
| Standard Packaging Quantity | 1 pc |
| UPC | 78285643755 |
Documents and Downloads
Documents and Downloads
- Grounding, Bonding, and nVent ERICO Cadweld Solutions Guide
- cUL KDER7.E220029
- UL KDER.E220029
- nVent ERICO Cadweld Welded Electrical Connections
- nVent ERICO Cadweld Permanent Grounding Connections meet the requirements of IEEE STD. 837-2014
- nVent ERICO Distribution Pole Solutions
- Your Trusted Source for Grounding & Bonding
- IP6548 Cable to Lug Horizontal Tap Perpendicular to Flange, Instruction Sheet IP6548_C
