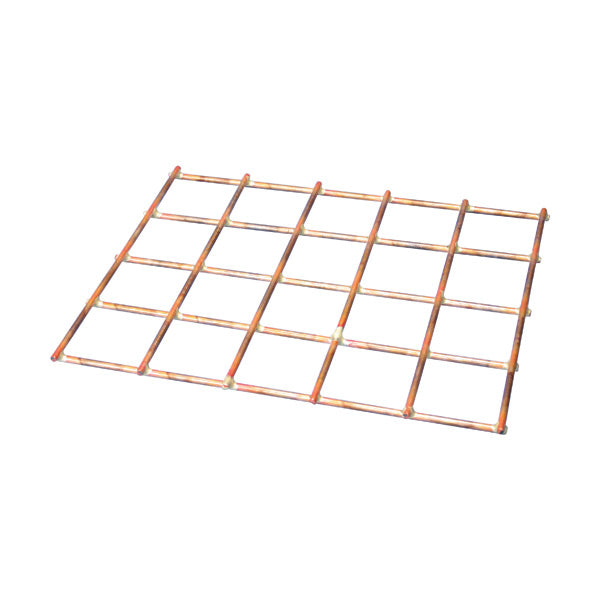

Erico MAT - GROUNDING - ERICO MAT, GRD, WIDTH X
Regular price
$158,592.83
Unit price
Brand: Erico
|
SKU:
9832355
Regular price
$158,592.83
Unit price
Description
Description
Prefabricated ground mats, made of wire mesh, are ideal for systems designed for safety purposes to protect operators against “touch potentials” at manually operated disconnect switches.
Features
- Silver brazed joints (35% silver alloy brazing material) provide strength to resist separation during installation and bear the traffic of heavy vehicles
- Conductor spacing available in standard configurations
- Option to add center wire into the mat configuration is available
- Ground mats are laid flat onto pallets for shipping
Specifications
Specifications
| Click image to enlarge. |
|---|
Specifications
| Part Number | MAT |
|---|---|
| Material | Copper, Copper-Bonded Steel |
| Length 1 (L1) | 96" Max |
| Width 1 (W1) | 72" Max |
| Grid Spacing (L2 x W2) | 2" x 2", 4" x 4", 6" x 6", 8" x 8", 10" x 10", 12" x 12" |
| Conductor Size | #4 Solid Copper, #6 Solid Copper, #6 Copper-Clad Steel (30% or 40% Conductivity), #8 Solid Copper, #8 Copper-Clad Steel (30% or 40% Conductivity) |
| Center Wire Conductor Size | 1/0 Solid or Stranded, 2/0 Solid or Stranded, 4/0 Solid or Stranded, 250 kcmil Stranded, 300 kcmil Stranded, 350 kcmil Stranded, 500 kcmil Stranded |
| Overhang | Standard: Half Conductor Spacing + 2" (51 mm), With Center Wire, With Overhanging Center Wire |
| Standard Packaging Quantity | 1 pc |
| UPC | 78285677494 |
