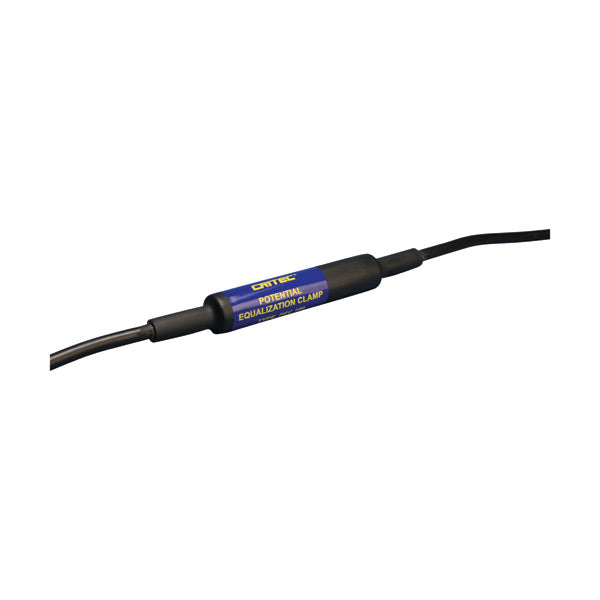

Erico PEC100 - GROUNDING - Potential Equalization Clamp
Regular price
$659.26
Unit price
Brand: Erico
|
SKU:
9832531
Regular price
$659.26
Unit price
Description
Description
Erico PEC100 - GROUNDING - Potential Equalization Clamp
Features
- High peak current capability provides long service life
- Weatherproof enclosure is suitable for direct burial
- The PEC100 is ATEX approved and suitable for use in potentially explosive atmospheres
Specifications
Specifications
Image 1
| Click image to enlarge. |
|---|
Image 2
| Click image to enlarge. |
|---|
Specifications
| Part Number | PEC100 |
|---|---|
| Spark-Over Voltage @ 100 V/s | 350 V |
| Max Discharge Current (Imax) | 100 kA 8/20 ?s |
| Technology | Gas Discharge Tube (GDT) |
| Insulation Resistance | 1 G? Min |
| Capacitance | 15 pF Max |
| Voltage Protection Level (Up) | 800 V @ 1,000 V/µs |
| Impulse Current (Iimp) | 25 kA 10/350 ?s |
| Lead Length | 17" |
| Lead Size | #5 |
| Enclosure Rating | IP 66IP 67 |
| Temperature | -22 to 158 °F |
| Diameter 1 (Ø1) | 1.1" |
| Diameter 2 (Ø2) | 0.64" |
| Length (L) | 37 1/2" |
| Unit Weight | 1.1 lb |
| Complies With | IEC® 61643-1 Class I, Class IIIEC® 62561-3 |
| Certifications | ATEX Baseefa13ATEX0113XCE, ERICO PEC100IECEx BAS 13.0065X |
| Standard Packaging Quantity | 1 pc |
| UPC | 78285656478 |
| EAN-13 | 8711893027570 |
Documents and Downloads
Documents and Downloads
- Bonding, Grounding and Surge Protection Products and Low Voltage Panel Components
- Rail Solutions - Expertly Engineered. Global Capabilities
- Surge Protection Solutions
- ATEX Baseefa13ATEX0113X
- CE, ERICO PEC100
- IECEx BAS 13.0065X
- Potential Equalization Clamp (PEC Series)
- Technical Note TN CR 001, Why Install Surge Protection
- Technical Note TN CR 002, The need for co-ordinated protection
