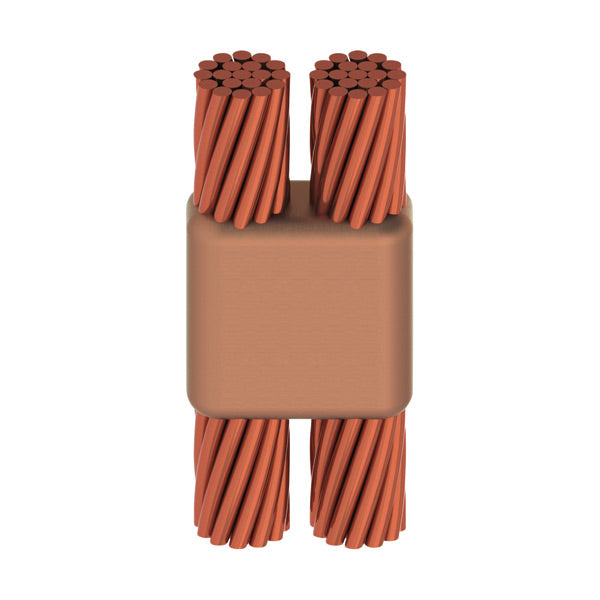

Erico PHR2G1T - GROUNDING - CADWELD MOLD, CABLE, VERT THRU
Regular price
$406.56
Unit price
Brand: Erico
|
SKU:
9826611
Regular price
$406.56
Unit price
Description
Description
nVent ERICO Cadweld graphite molds are designed and engineered for thousands of connection styles and conductor combinations.
Features
- Forms a permanent, low resistance connection
- Provides a molecular bond
- nVent ERICO Cadweld Exothermic Connections are rated with the same current capacity as the conductor
- Portable installation equipment with no external source of power required
- Installers can be easily trained to make nVent ERICO Cadweld Exothermic Connections
- Connections can be visually inspected
Specifications
Specifications
| Click image to enlarge. |
|---|
Specifications
| Part Number | PHR2G1T |
|---|---|
| Mold Family | PH |
| Conductor 1 | 2/0 Concentric |
| Conductor 1 Outer Diameter, Nominal | 0.418" |
| Conductor 2 | #2 Solid |
| Conductor 2 Outer Diameter, Nominal | 0.257" |
| Split Crucible | No |
| Wear Plates | No |
| Mold Only | No |
| Welding Material | 150 or 150PLUSF20, Sold Separately |
| Handle Clamp | L160, Sold Separately |
| Price Key | R |
| Ease of Use | Difficult |
| Standard Packaging Quantity | 1 pc |
| UPC | 78285617199 |
Documents and Downloads
Documents and Downloads
- Wind Power Solutions
- Grounding, Bonding, and nVent ERICO Cadweld Solutions Guide
- nVent ERICO Cadweld Welded Electrical Connections
- nVent ERICO Cadweld Permanent Grounding Connections meet the requirements of IEEE STD. 837-2014
- nVent ERICO Distribution Pole Solutions
- Your Trusted Source for Grounding & Bonding
