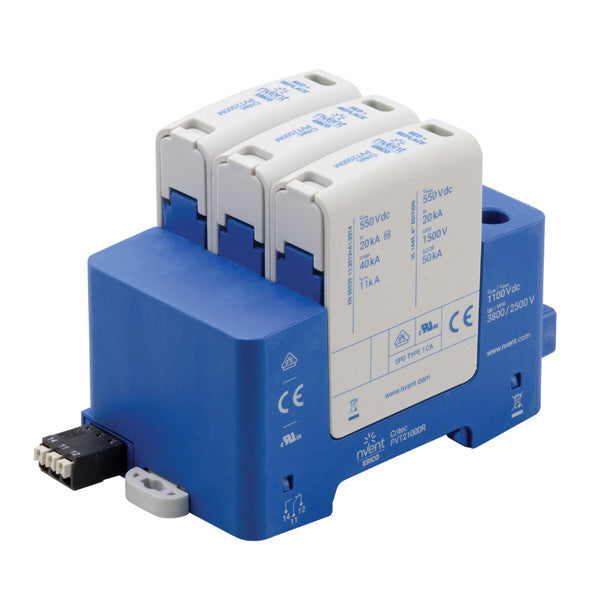

Erico PVT21000R - GROUNDING - PV TYPE 2, 1000VDC
Regular price
$279.51
Unit price
Brand: Erico
|
SKU:
9824857
Regular price
$279.51
Unit price
Description
Description
PVT2 Photovoltaic Surge Protection Class II
Features
- Suited for use at the DC input of distributed string inverters in solar arrays
- Thermal protection included to ensure safe failure modes
- Compact, yet high surge rated pluggable design, using minimum DIN rail width
Specifications
Specifications
Image 1
| Click image to enlarge. |
|---|
Image 2
| Click image to enlarge. |
|---|
Image 3
| Click image to enlarge. |
|---|
Specifications
| Part Number | PVT21000R |
|---|---|
| Max Continuous Operating Voltage (Ucpv) | 1,100 V |
| Nominal Discharge Current (In), IEC | 20 kA 8/20 ?s |
| Max Discharge Current (Imax) | 40 kA 8/20 ?s |
| Total Discharge Current (Itotal) | 50 kA 8/20 ?s |
| Voltage Protection Level (Up) | 4,000 V |
| Response Time | 25 ns Max |
| Short Circuit Current Rating (Isccr) | 11 kA |
| Max Continuous Operating Voltage (Vpvdc) | 1,100 VDC |
| Voltage Protection Rating (VPR) | 2,500 V |
| Nominal Discharge Current (In), UL | 20 kA 8/20 ?s |
| Short Circuit Current Rating (SCCR) | 50 kA |
| Protection Modes | -ve to PE, -ve to +ve, +ve to PE |
| Altitude | 6,562' Max |
| Humidity | 5 – 95 % RH |
| Temperature | -40 to 185 °F |
| Connection, Flexible | #4 |
| Connection, Solid | #2 |
| Connection, Stranded | #2 |
| Enclosure Material | UL® 94V-0 Thermoplastic |
| Enclosure Rating | IP 20 |
| Mounting | 35 mm top hat DIN rail |
| Torque (TQ) | 3.3 ft lb Max |
| Remote Contact Switching Capacity | 1.0 A @ 125 VAC, 1.0 A @ 250 VAC, 0.5 A @ 12 VDC, 0.5 A @ 24 VDC, 0.5 A @ 48 VDC |
| Remote Contacts | Yes |
| Status Indication | Mechanical flag |
| Depth (D) | 2.72" |
| Height (H) | 3.54" |
| Width (W) | 2.13" |
| Unit Weight | 0.9 lb |
| Replacement Module | PVT2500M |
| Certification Details | UL® 1449 Edition 4 Type 1CA |
| Complies With | EN 50539-11 Type 1, Type 2 |
| Certifications | CE, ERICO PVT, cURus, VDE |
| Standard Packaging Quantity | 1 pc |
| UPC | 78285695361 |
| EAN-13 | 782856953616 |
