Brand: Erico
|
SKU:
9830555

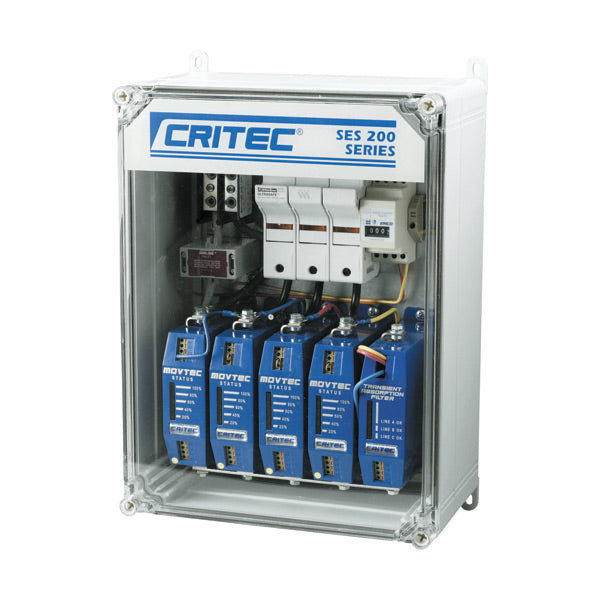

Erico SES200120/240 - GROUNDING - PROTECTOR, SURGE, 120/240V
Regular price
$6,458.43
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Erico SES200120/240 - GROUNDING - PROTECTOR, SURGE, 120/240V
Regular price
$6,458.43
Unit price
Description
Description
Service Entrance Suppressor, 200 kA
Features
- 200kA 8/20?s primary protection rated for service entrance applications
- Modular design allows easy replacement of surge modules
- Built-in disconnect and fusing eliminates need for external fusing
- Transient Discriminating (TD) Technology provides increased service life
Specifications
Specifications
| Click image to enlarge. |
|---|
Specifications
| Part Number | SES200120/240 |
|---|---|
| Nominal System Voltage (Un) | 120/240 V |
| Distribution System | 1Ph 3W+G |
| Max Continuous Operating Voltage (Uc) | 170/340 VAC |
| Stand-off Voltage | 240/480 V |
| Frequency | 50 – 60 Hz |
| Short Circuit Current Rating (SCCR) | 200 kA |
| Nominal Discharge Current (In), Per Mode | 80 kA 8/20 ?s |
| Max Discharge Current (Imax), Per Mode | 100 kA 8/20 ?s |
| Voltage Protection Rating (VPR) | 600 V @ 3 kA L-N800 V @ 20 kA L-N |
| Aggregate Surge Rating | 200 kA 8/20 ?s |
| Impulse Current (Iimp) | 20 kA 10/350 ?s |
| Max Operating Current | 25 mA |
| Protection Modes | All modes protected |
| Status Indication | 5 segment LED bar graph per phase |
| Technology | TD technology with thermal disconnect |
| Lead Size | #12 – #2 |
| Temperature | 14 – 140 °F |
| Enclosure Material | Polycarbonate |
| Enclosure Rating | IP 66NEMA®-4X |
| Mounting | Wall mount |
| Depth (D) | 7 1/2" |
| Height (H) | 16" |
| Width (W) | 12" |
| Unit Weight | 17.64 lb |
| Certification Details | UL® 1449 Edition 3 Type 1/2, 20 kA Mode |
| Complies With | ANSI®/IEEE® C62.41.2-2002 Cat A, Cat B, Cat C; ANSI®/IEEE® C62.41.2-2002 Scenario II, Exposure 3, 100 kA 8/20 ?s, 10 kA 10/350 ?s |
| Standard Packaging Quantity | 1 pc |
| UPC | 78285667057 |
| EAN-13 | 8711893045918 |
Documents and Downloads
Documents and Downloads
- Rail Solutions - Expertly Engineered. Global Capabilities
- Wind Power Solutions
- nVent ERICO Lightning and Surge Solutions
- SEP400 / SES200 Connection Options
- SES200 Installation Dimensions and Conduit Entry Locations
- Technical Note TN CR 001, Why Install Surge Protection
- Technical Note TN CR 002, The need for co-ordinated protection
- Technical Note TN CR 003, Where to install SPD's for AC powered electronic equipment
- Technical Note TN CR 006, SPDs and the Benefits of Filtering
