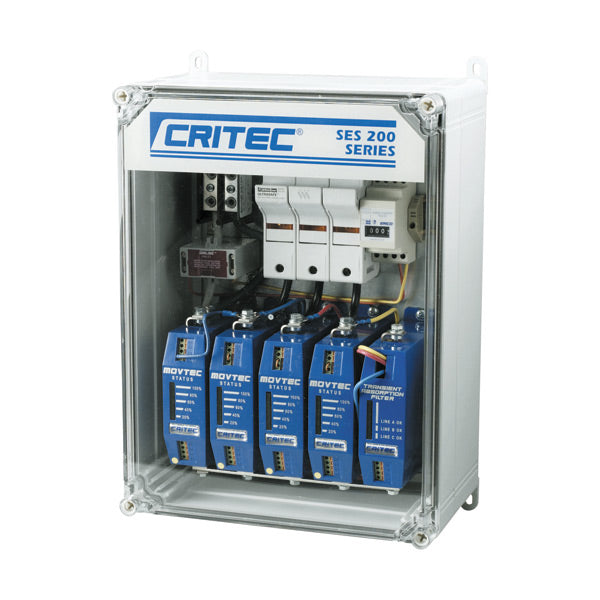

Erico SES200240D - GROUNDING - PROTECTOR, SURGE, 240V
Regular price
$7,102.88
Unit price
Brand: Erico
|
SKU:
9832537
Regular price
$7,102.88
Unit price
Description
Description
Service Entrance Suppressor, 200 kA
Features
- 200kA 8/20?s primary protection rated for service entrance applications
- Modular design allows easy replacement of surge modules
- Built-in disconnect and fusing eliminates need for external fusing
- Transient Discriminating (TD) Technology provides increased service life
Specifications
Specifications
| Click image to enlarge. |
|---|
Specifications
| Part Number | SES200240D |
|---|---|
| Nominal System Voltage (Un) | 220/240 V |
| Distribution System | 3Ph? 3W+G |
| Max Continuous Operating Voltage (Uc) | 400 VAC |
| Stand-off Voltage | 275 V |
| Frequency | 50 – 60 Hz |
| Short Circuit Current Rating (SCCR) | 200 kA |
| Nominal Discharge Current (In), Per Mode | 80 kA 8/20 ?s |
| Max Discharge Current (Imax), Per Mode | 100 kA 8/20 ?s |
| Voltage Protection Rating (VPR) | 900 V @ 3 kA L-L1,000 V @ 20 kA L-L |
| Aggregate Surge Rating | 200 kA 8/20 ?s |
| Impulse Current (Iimp) | 20 kA 10/350 ?s |
| Max Operating Current | 25 mA |
| Protection Modes | L-L |
| Status Indication | 5 segment LED bar graph per phase |
| Technology | TD technology with thermal disconnect |
| Lead Size | #12 – #2 |
| Temperature | 14 – 140 °F |
| Enclosure Material | Polycarbonate |
| Enclosure Rating | IP 66NEMA®-4X |
| Mounting | Wall mount |
| Depth (D) | 7 1/2" |
| Height (H) | 16" |
| Width (W) | 12" |
| Unit Weight | 17.64 lb |
| Certification Details | UL® 1449 Edition 3 Type 1/2, 20 kA Mode |
| Complies With | ANSI®/IEEE® C62.41.2-2002 Cat A, Cat B, Cat C; ANSI®/IEEE® C62.41.2-2002 Scenario II, Exposure 3, 100 kA 8/20 ?s, 10 kA 10/350 ?s |
| Standard Packaging Quantity | 1 pc |
| UPC | 78285669557 |
Documents and Downloads
Documents and Downloads
- Rail Solutions - Expertly Engineered. Global Capabilities
- Wind Power Solutions
- nVent ERICO Lightning and Surge Solutions
- SEP400 / SES200 Connection Options
- SES200 Installation Dimensions and Conduit Entry Locations
- Technical Note TN CR 001, Why Install Surge Protection
- Technical Note TN CR 002, The need for co-ordinated protection
- Technical Note TN CR 003, Where to install SPD's for AC powered electronic equipment
- Technical Note TN CR 006, SPDs and the Benefits of Filtering
