Brand: Erico
|
SKU:
9828529

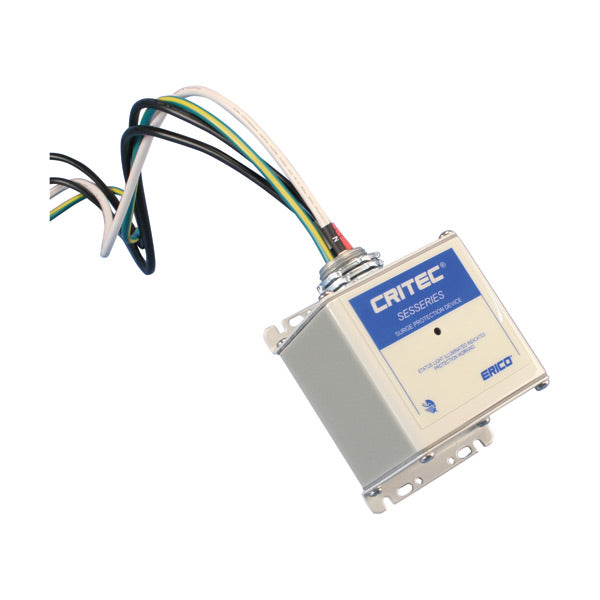

Erico SES40120/240 - GROUNDING - Service Entrance Suppressor, 40 kA, Metal
Regular price
$348.48
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Erico SES40120/240 - GROUNDING - Service Entrance Suppressor, 40 kA...
Regular price
$348.48
Unit price
Description
Description
Erico SES40120/240 - GROUNDING - Service Entrance Suppressor, 40 kA, Metal
Features
- Compact NEMA®-4 enclosure design can be flush mounted or installed in a small space
- LED status indication flag for status monitoring
- 120/240 VAC operating voltage suits the most common power distribution system for residential or small commercial buildings
- 40 kA 8/20 ?s maximum surge rating provides protection suitable for service entrance and distribution panels
Specifications
Specifications
| Click image to enlarge. |
|---|
Specifications
| Part Number | SES40120/240 |
|---|---|
| Nominal System Voltage (Un) | 120/240 V |
| Distribution System | 1Ph 3W+G |
| Max Continuous Operating Voltage (Uc) | 170/276 VAC |
| Frequency | 50 – 60 Hz |
| Short Circuit Current Rating (SCCR) | 200 kA |
| Nominal Discharge Current (In) | 20 kA 8/20 ?s |
| Max Discharge Current (Imax) | 40 kA 8/20 ?s |
| Voltage Protection Rating (VPR) | 800 V @ 3 kA1,200 V @ 20 kA |
| Protection Modes | L-LL-NL-PE |
| Status Indication | LED |
| Technology | MOV with thermal disconnect |
| Lead Length | 30" |
| Lead Size | #10 |
| Ground Lead Length | 36" |
| Temperature | -40 to 176 °F |
| Enclosure Material | Metal |
| Enclosure Rating | IP 65NEMA®-4 |
| Mounting | 3/4” straight nipple |
| Depth (D) | 2.87" |
| Height (H) | 3.27" |
| Width (W) | 3.27" |
| Unit Weight | 1.54 lb |
| Certification Details | UL® 1449 Edition 4 Type 1/2, 20 kA Mode |
| Complies With | ANSI®/IEEE® C62.41.2-2002 Cat A, Cat B, Cat C; ANSI®/IEEE® C62.41.2-2002 Scenario II, Exposure 2, 20 kA 8/20 ?s, 2 kA 10/350 ?s, IEC® 61643-1 Class II |
| Certifications | UL |
| Standard Packaging Quantity | 1 pc |
| UPC | 78285662195 |
Documents and Downloads
Documents and Downloads
- Rail Solutions - Expertly Engineered. Global Capabilities
- Wind Power Solutions
- UL VZCA.E325047
- nVent ERICO Lightning and Surge Solutions
- SES40 Instruction Sheet
- Technical Note TN CR 001, Why Install Surge Protection
- Technical Note TN CR 002, The need for co-ordinated protection
- Technical Note TN CR 003, Where to install SPD's for AC powered electronic equipment
- Technical Note TN CR 006, SPDs and the Benefits of Filtering
