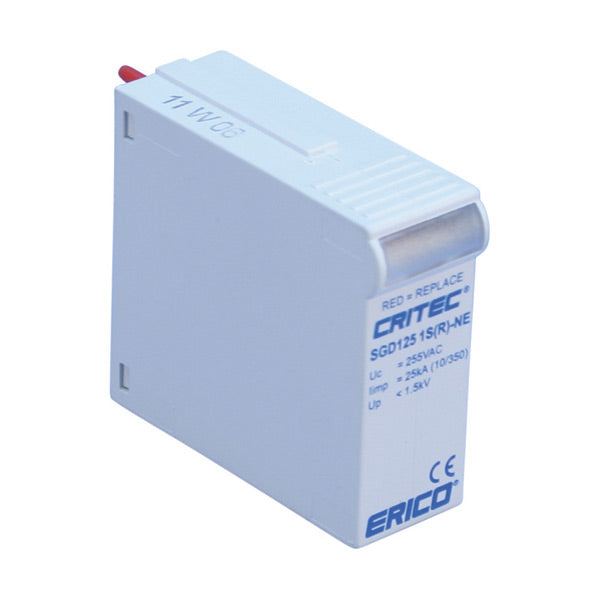

Erico SGD125M - GROUNDING - Spark Gap Diverter Replacement Module
Regular price
$298.87
Unit price
Brand: Erico
|
SKU:
9826324
Regular price
$298.87
Unit price
Description
Description
Erico SGD125M - GROUNDING - Spark Gap Diverter Replacement Module
Specifications
Specifications
Image 1
| Click image to enlarge. |
|---|
Image 2
| Click image to enlarge. |
|---|
Specifications
| Part Number | SGD125M |
|---|---|
| Measured Limiting Voltage (MLV) | 2,420 VAC |
| Voltage Protection Level (Up) | 1,600 V @ 20 kA |
| Max Discharge Current (Imax), Per Mode | 60 kA 8/20 ?s |
| Impulse Current (Iimp) | 25 kA 10/350 ?s |
| Follow Current Extinguishing Capability | 100 A @ 0.5 MA |
| Max Operating Current | 0.5 mA |
| Frequency | 50 – 60 Hz |
| Short Circuit Current Rating (SCCR) | 25 kA |
| Enclosure Material | UL® 94V-0 Thermoplastic |
| Temperature | -40 to 176 °F |
| Module Width | 1 M |
| Depth (D) | 1.92" |
| Height (H) | 1.78" |
| Width (W) | 0.69" |
| Unit Weight | 0.05 lb |
| Certifications | CE, cURus |
| Standard Packaging Quantity | 1 pc |
| UPC | 78285662253 |
| EAN-13 | 8711893097153 |
Documents and Downloads
Documents and Downloads
- Rail Solutions - Expertly Engineered. Global Capabilities
- Wind Power Solutions
- cUR VZCA8.E325047
- UR VZCA2.E325047
- TDX Modular Diagnostic Sheet
- Technical Note TN CR 001, Why Install Surge Protection
- Technical Note TN CR 002, The need for co-ordinated protection
- Technical Note TN CR 003, Where to install SPD's for AC powered electronic equipment
- Technical Note TN CR 006, SPDs and the Benefits of Filtering
