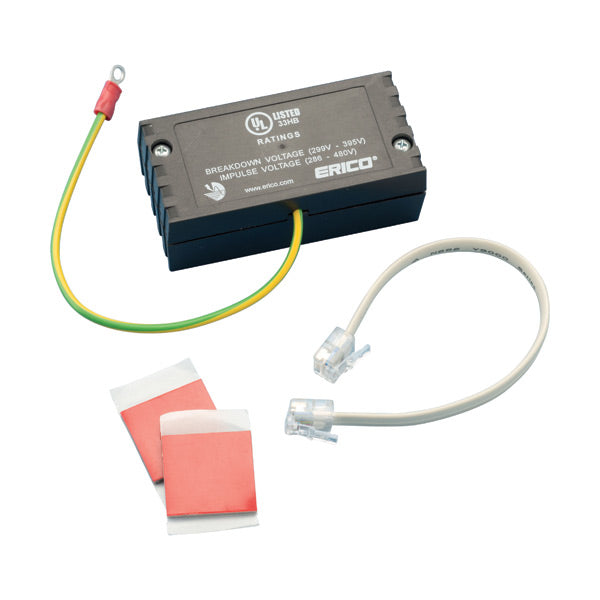

Erico SLP1RJ11 - GROUNDING - Telephone Line Protector
Regular price
$347.27
Unit price
Brand: Erico
|
SKU:
9830546
Regular price
$347.27
Unit price
Description
Description
Erico SLP1RJ11 - GROUNDING - Telephone Line Protector
Features
- RJ11 sockets provide simple plug-in connection for 4 or 6 position RJ plugs
- Includes patch cord and adhesive mounting strips
- Provides both L-L and L-PE protection modes for comprehensive protection
- Automatic over-current protection
Specifications
Specifications
Image 1
| Click image to enlarge. |
|---|
Image 2
| Click image to enlarge. |
|---|
Specifications
| Part Number | SLP1RJ11 |
|---|---|
| Max Continuous Operating Voltage (Uc) | 280 V |
| Max Discharge Current (Imax), Per Mode | 500 A 8/20 ?s |
| Voltage Protection Level (Up), T-R | 110 V |
| Voltage Protection Level (Up), T/R-G | 500 V @ 125 A |
| Rated Load Current (IL) | 160 mA |
| Connection Type | RJ11 |
| Ground Lead Length | 6" |
| Lead Size | #18 |
| Temperature | -40 to 149 °F |
| Depth (D) | 1.1" |
| Height (H) | 1 1/2" |
| Width (W) | 3.06" |
| Unit Weight | 0.11 lb |
| Certification Details | UL® 497A |
| Certifications | UL |
| Standard Packaging Quantity | 1 pc |
| UPC | 78285647510 |
Documents and Downloads
Documents and Downloads
- Rail Solutions - Expertly Engineered. Global Capabilities
- Rail Surge Protection Guide
- UL QVRG.E217305
- nVent ERICO Lightning and Surge Solutions
- Technical Note TN CR 001, Why Install Surge Protection
- Technical Note TN CR 002, The need for co-ordinated protection
- Technical Note TN CR 003, Where to install SPD's for AC powered electronic equipment
- Technical Note TN CR 006, SPDs and the Benefits of Filtering
- Technical Note TN CR 007, - What are clamping voltages, suppressed voltage ratings and let-throughs
