Brand: Erico | SKU: 9832702

Erico SRF363N - GROUNDING - SRF, N-SERIES

Name: Erico SRF363N - GROUNDING - SRF, N-SERIES
Brand: Anixter
SKU: 9832702
Price: 6387.30 USD
Availability: InStock

$6,387.30

Description

Surge Reduction Filter N-Series, Three Phase

High-performance protection incorporating Spark Gap and Transient Discriminating (TD) technologies
High surge rating ideal for exposed critical service entrance applications
Reduces let-through voltages and rate-of-voltage rise (dv/dt) and helps provide optimum protection for electronic equipment
Extreme reliability and simplified design with direct connection from input to output
Comprehensive front panel status and internal diagnostic LEDs

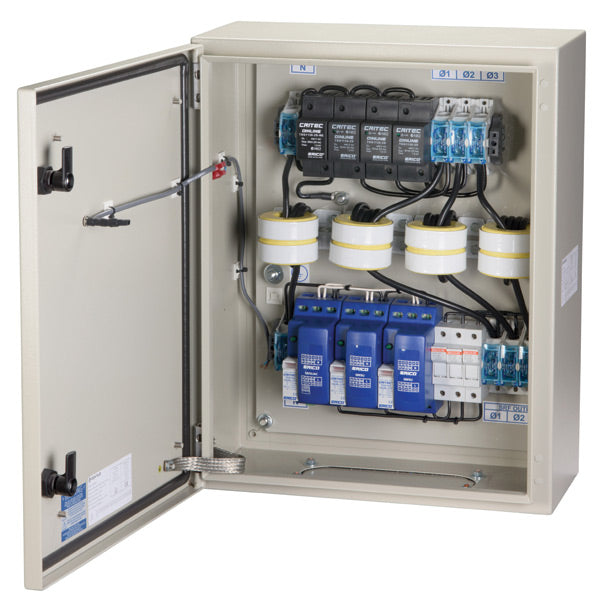

Click image to enlarge.

Part Number	SRF363N
Nominal System Voltage (Un)	220/380 - 240/415 VAC
Distribution System	3Ph Y 4W+G
System Compatibility	TN-C, TN-C-S, TN-S, TT
Rated Load Current (IL)	63 A
Frequency	50 – 60 Hz
Short Circuit Current Rating (SCCR)	43 kA
Heat Dissipation	34 W
Rate of Voltage Rise (dV/dt)	5 V/µs Max
Filtering	-40 dB @ 100 kHz
Input Connection	10 - 35 mm²
Output Connection	10 - 35 mm²
Protection Modes	All modes protected
Technology	Spark Gap, In-line series low pass sine wave filter, TD technology with thermal disconnect (50 kA 8/20us secondary stage)
Enclosure Material	Metal
Enclosure Rating	IP 65
Mounting	Wall mount
Status Indication	Front panel LED, Internal diagnostic primary and secondary protection LEDs, Change-over contact (Form C dry), 250 VAC/30 VDC/5 A, 4 kV isolation
Depth (D)	7.87"
Height (H)	19.69"
Width (W)	15 3/4"
Unit Weight	39 lb
Complies With	IEC® 61643-11 Class I, Class II; ANSI®/IEEE® C62.41.2-2002 Cat A, Cat B, Cat C; ANSI®/IEEE® C62.41.2-2002 Scenario II, Exposure 3, 100 kA 8/20 ?s, 10 kA 10/350 ?s
Certifications	CE, ERICO SRF Series
Standard Packaging Quantity	1 pc
UPC	78285691539
EAN-13	782856915393
