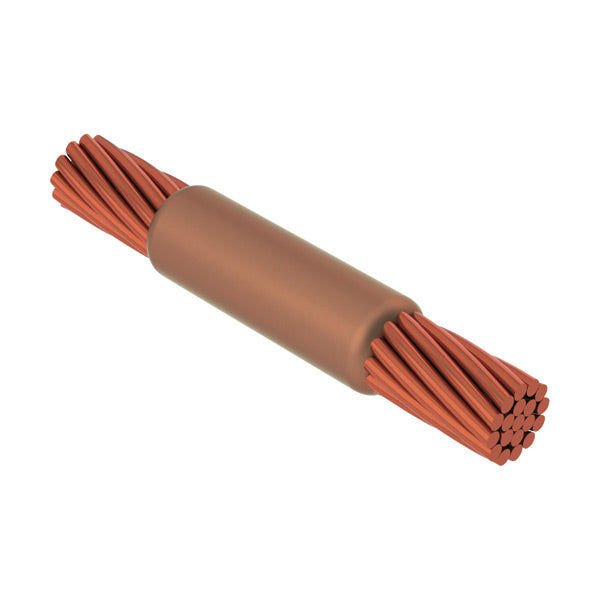

Erico SSCY3Y1 - GROUNDING - CADWELD MOLD, CABLE, HORZ SPLICE
Regular price
$177.46
Unit price
Brand: Erico
|
SKU:
9829248
Regular price
$177.46
Unit price
Description
Description
nVent ERICO Cadweld graphite molds are designed and engineered for thousands of connection styles and conductor combinations.
Features
- Forms a permanent, low resistance connection
- Provides a molecular bond
- nVent ERICO Cadweld Exothermic Connections are rated with the same current capacity as the conductor
- Portable installation equipment with no external source of power required
- Installers can be easily trained to make nVent ERICO Cadweld Exothermic Connections
- Connections can be visually inspected
Specifications
Specifications
| Click image to enlarge. |
|---|
Specifications
| Part Number | SSCY3Y1 |
|---|---|
| Mold Family | SS |
| Conductor 1 | 50 mm² Concentric |
| Conductor 1 Outer Diameter, Nominal | 0.354" |
| Conductor 2 | 25 mm² Concentric |
| Conductor 2 Outer Diameter, Nominal | 0.26" |
| Split Crucible | No |
| Wear Plates | No |
| Mold Only | No |
| Welding Material | 45 or 45PLUSF20, Sold Separately |
| Handle Clamp | L160, Sold Separately |
| Price Key | C |
| Ease of Use | Preferred |
| Certifications | cULus |
| Standard Packaging Quantity | 1 pc |
| UPC | 78285663174 |
| EAN-13 | 782856631743 |
Documents and Downloads
Documents and Downloads
- Wind Power Solutions
- cUL KDER7.E220029
- UL KDER.E220029
- nVent ERICO Cadweld Welded Electrical Connections
- nVent ERICO Cadweld Permanent Grounding Connections meet the requirements of IEEE STD. 837-2014
- nVent ERICO Distribution Pole Solutions
- Your Trusted Source for Grounding & Bonding
- IP7230 Type SS, Instruction Sheet IP7230_B
