Brand: Erico
|
SKU:
9826043
Erico TAC8C1G | Cable to Cable, TA, C Lightning Conductor, 0.418" Conductor 1 OD, #6 Solid, 0.162" Conductor 2 OD
Regular price
$177.60
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Erico TAC8C1G | Cable to Cable, TA, C Lightning Conductor, 0.418&qu...
Regular price
$177.60
Unit price
Description
Description

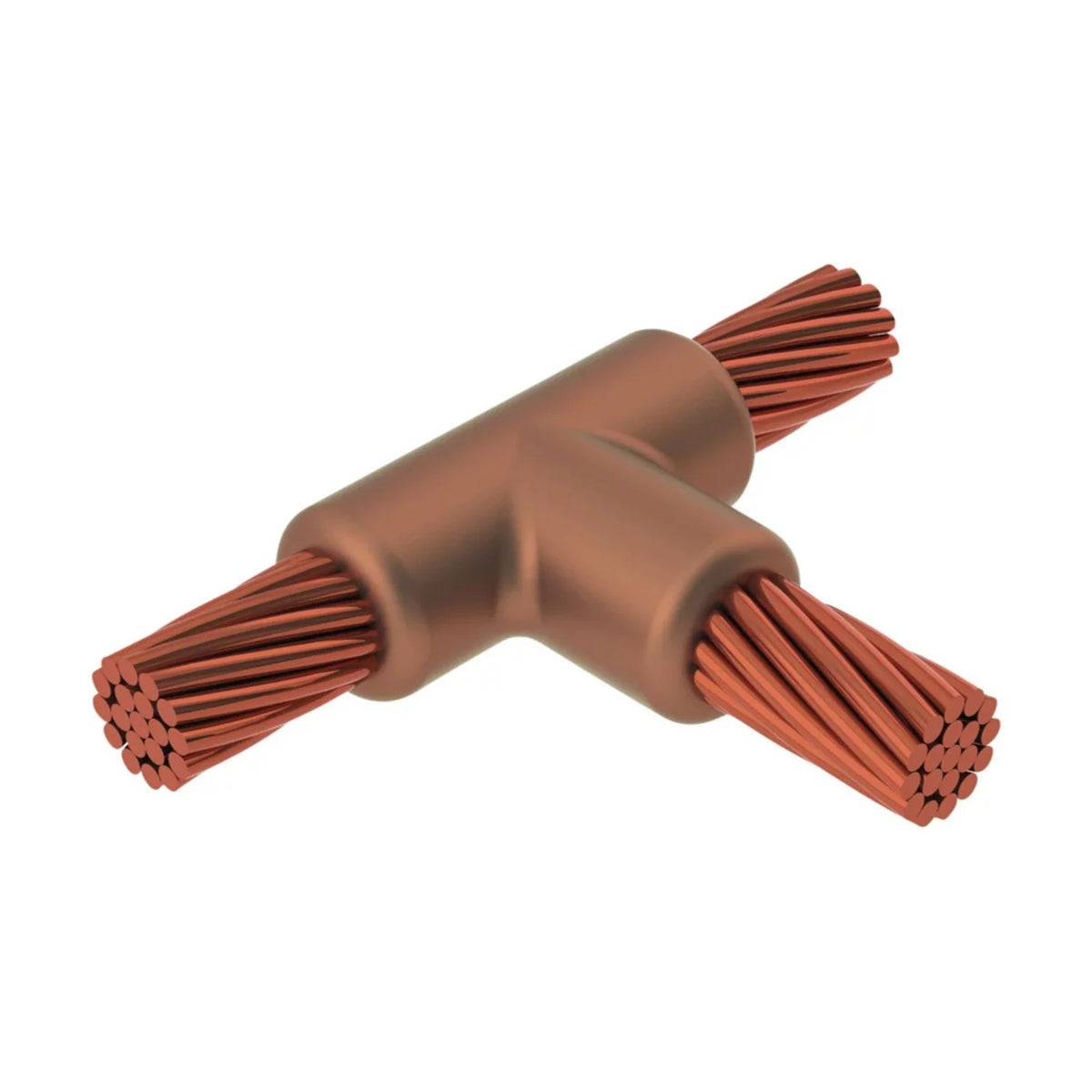

Erico TAC8C1G | Cable to Cable, TA, C Lightning Conductor, 0.418" Conductor 1 OD, #6 Solid, 0.162" Conductor 2 OD.
nVent ERICO Cadweld graphite molds are designed and engineered for thousands of connection styles and conductor combinations.
Erico - TAC8C1G - Features
- Forms a permanent, low resistance connection
- Provides a molecular bond
- nVent ERICO Cadweld Exothermic Connections are rated with the same current capacity as the conductor
- Portable installation equipment with no external source of power required
- Installers can be easily trained to make nVent ERICO Cadweld Exothermic Connections
- Connections can be visually inspected
Specifications
Specifications
Erico - TAC8C1G - Specifications
| Mold Family | TA |
|---|---|
| Conductor 1 | C Lightning Conductor |
| Conductor 1 Outer Diameter, Nominal | 0.42" |
| Conductor 2 | #6 Solid |
| Conductor 2 Outer Diameter, Nominal | 0.16" |
| Mold Split | Horizontal |
| Split Crucible | No |
| Wear Plates | No |
| Mold Only | No |
| Welding Material | 45 or 45PLUSF20, Sold Separately |
| Handle Clamp | L160, Sold Separately |
| Conductor Sleeve | B1331L, Sold Separately |
| Mold Sealer | T403, Sold Separately |
| Price Key | C |
| Ease of Use | Preferred |
| UPC | 782856237723 |
