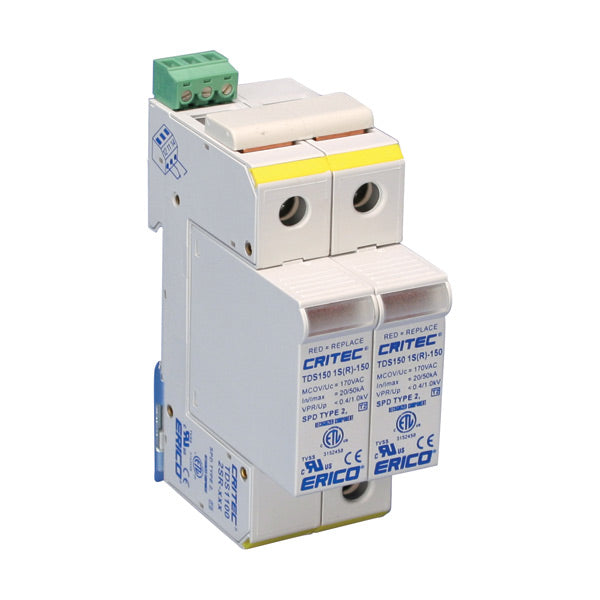

Erico TDS11002SR277 - GROUNDING - DIVERTER, TD, 277V, 100KA
Regular price
$395.53
Unit price
Description
Description
Transient Discriminating Surge Diverter, 100 kA Single Mode
Features
- TD Technology with thermal disconnect protection
- Compact design fits into DIN distribution panel boards and motor control centers
- Indication flags and voltage-free contacts provide remote status monitoring
- Separate plug and base design facilitates replacement of a failed surge module
- 100kA 8/20?s maximum surge rating provides protection suitable for sub-distribution panels and a long operational life
Specifications
Specifications
Image 1
| Click image to enlarge. |
|---|
Image 2
| Click image to enlarge. |
|---|
Specifications
| Part Number | TDS11002SR277 |
|---|---|
| Nominal System Voltage (Un) | 220 - 277 VAC |
| Max Continuous Operating Voltage (Uc) | 320 VAC |
| Stand-off Voltage | 480 VAC |
| Voltage Protection Rating (VPR) | 1,000 V @ 3 kA1,600 V @ 20 kA |
| Nominal Discharge Current (In) | 40 kA 8/20 ?s |
| Max Discharge Current (Imax) | 100 kA 8/20 ?s |
| Impulse Current (Iimp) | 12.5 kA 10/350 ?s |
| Back-Up Overcurrent Protection | 125 A |
| Response Time | 5 ns Max |
| Short Circuit Current Rating (SCCR) | 200 kA |
| Frequency | 0 – 100 Hz |
| Protection Modes | L-N, L-PE, N-PE |
| Technology | TD technology with thermal disconnect |
| Connection, Solid | #2 Max |
| Connection, Stranded | #4 Max |
| Mounting | 35 mm top hat DIN rail |
| Enclosure Material | UL® 94V-0 Thermoplastic |
| Enclosure Rating | IP 20NEMA®-1 |
| Remote Contacts | Yes |
| Status Indication | Mechanical flag |
| Temperature | -40 to 176 °F |
| Module Width | 2 M |
| Depth (D) | 2.68" |
| Height (H) | 3.54" |
| Width (W) | 1.38" |
| Unit Weight | 0.53 lb |
| Certification Details | UL® 1449 Edition 4 Type 4CA, 20 kA Mode |
| Complies With | ANSI®/IEEE® C62.41.2-2002 Cat A, Cat B, Cat C; ANSI®/IEEE® C62.41.2-2002 Scenario II, Exposure 3, 100 kA 8/20 ?s, 10 kA 10/350 ?s, IEC® 61643-1 Class I, Class II |
| Replacement Module | TDS150M277 |
| Certifications | CE, cURus |
| Standard Packaging Quantity | 1 pc |
| UPC | 78285658537 |
| EAN-13 | 8711893046250 |
