Brand: Erico
|
SKU:
9832006

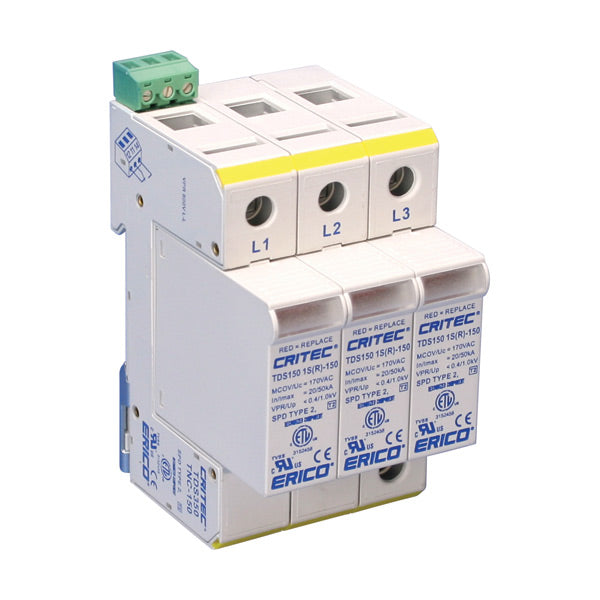

Erico TDS350TNC150 - GROUNDING - Transient Discriminating Surge Diverter, 50 kA TNC System
Regular price
$592.01
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Erico TDS350TNC150 - GROUNDING - Transient Discriminating Surge Div...
Regular price
$592.01
Unit price
Description
Description
Transient Discriminating Surge Diverter, 50 kA TNC System
Features
- TD Technology with thermal disconnect protection
- Compact design fits into DIN distribution panel boards and motor control centers
- Indication flags and voltage-free contacts provide remote status monitoring
- Separate plug and base design facilitates replacement of a failed surge module
- 50kA 8/20?s maximum surge rating provides protection suitable for sub-distribution panels and a long operational life
Specifications
Specifications
Image 1
| Click image to enlarge. |
|---|
Image 2
| Click image to enlarge. |
|---|
Specifications
| Part Number | TDS350TNC150 |
|---|---|
| Nominal System Voltage (Un) | 120 - 150 VAC |
| Max Continuous Operating Voltage (Uc) | 170/295 VAC |
| Stand-off Voltage | 240/415 VAC |
| Voltage Protection Rating (VPR) | 600 V @ 3 kA1,000 V @ 25 kA |
| Nominal Discharge Current (In) | 25 kA 8/20 ?s |
| Max Discharge Current (Imax) | 50 kA 8/20 ?s |
| Back-Up Overcurrent Protection | 125 A |
| Short Circuit Current Rating (SCCR) | 200 kA |
| Frequency | 0 – 100 Hz |
| Protection Modes | L-LL-N |
| Response Time | 5 ns Max |
| Technology | TD technology with thermal disconnect |
| Connection, Solid | #2 Max |
| Connection, Stranded | #4 Max |
| Mounting | 35 mm top hat DIN rail |
| Enclosure Material | UL® 94V-0 Thermoplastic |
| Enclosure Rating | IP 20NEMA®-1 |
| Remote Contacts | Yes |
| Status Indication | Mechanical flag |
| Temperature | -40 to 176 °F |
| Module Width | 3 M |
| Depth (D) | 2.68" |
| Height (H) | 3.54" |
| Width (W) | 2.07" |
| Unit Weight | 0.79 lb |
| Certification Details | UL® 1449 Edition 4 Type 4CA, 20 kA Mode |
| Complies With | ANSI®/IEEE® C62.41.2-2002 Cat A, Cat B, Cat C; ANSI®/IEEE® C62.41.2-2002 Scenario II, Exposure 2, 50 kA 8/20 ?s, IEC® 61643-1 Class II |
| Replacement Module | TDS150M150 |
| Certifications | CE, cURus |
| Standard Packaging Quantity | 1 pc |
| UPC | 78285658545 |
| EAN-13 | 8711893046274 |
Documents and Downloads
Documents and Downloads
- Rail Solutions - Expertly Engineered. Global Capabilities
- Wind Power Solutions
- cUR VZCA8.E325047
- UR VZCA2.E325047
- TDS Series
- TDS-DINLINE Surge Suppressor Installation Instructions
- Technical Note TN CR 001, Why Install Surge Protection
- Technical Note TN CR 002, The need for co-ordinated protection
- Technical Note TN CR 003, Where to install SPD's for AC powered electronic equipment
