Brand: Erico
|
SKU:
9832735

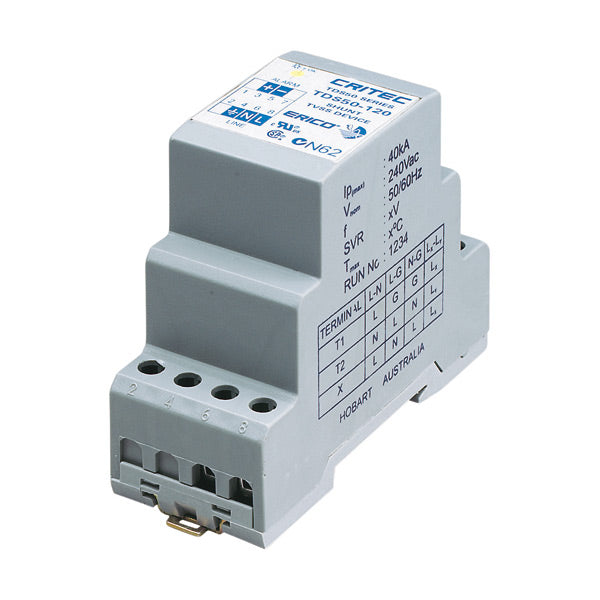

Erico TDS50240 - GROUNDING - Transient Discriminating Surge Diverter, 50 kA AU Three Mode
Regular price
$531.48
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Erico TDS50240 - GROUNDING - Transient Discriminating Surge Diverte...
Regular price
$531.48
Unit price
Description
Description
Transient Discriminating Surge Diverter, 50 kA AU Three Mode
Features
- Compact design fits into most distribution panels and motor control centers
- Three modes of protection: L-N, L-PE and N-PE
- LED status indication and opto-isolated output for remote status monitoring
- Optional dry alarm contacts using DINLINE Alarm Relay
- Transient Discriminating (TD) technology helps ensure safe operation during abnormal over-voltage events
Specifications
Specifications
| Click image to enlarge. |
|---|
Specifications
| Part Number | TDS50240 |
|---|---|
| Nominal System Voltage (Un) | 240 VAC |
| Max Continuous Operating Voltage (Uc) | 340 VAC |
| Voltage Protection Rating (VPR) | 800 V @ 3 kA |
| Max Discharge Current (Imax) | 20 kA 8/20 ?s L-N20 kA 8/20 ?s L-PE10 kA 8/20 ?s N-PE |
| Frequency | 50 – 60 Hz |
| Protection Modes | L-N, L-PE, N-PE |
| Connection, Stranded | #10 Max |
| Response Time | 5 ns Max |
| Mounting | 35 mm top hat DIN rail |
| Enclosure Material | UL® 94V-0 Thermoplastic |
| Enclosure Rating | IP 20NEMA®-1 |
| Status Indication | LED |
| Remote Contacts | No |
| Module Width | 2 M |
| Depth (D) | 2.68" |
| Height (H) | 3.54" |
| Width (W) | 1.38" |
| Unit Weight | 0.4 lb |
| Designed to Meet | ANSI®/IEEE® C62.41.2 Cat A, Cat B, Cat C |
| Standard Packaging Quantity | 1 pc |
| UPC | 78285644043 |
| EAN-13 | 8711893029840 |
Documents and Downloads
Documents and Downloads
- Rail Solutions - Expertly Engineered. Global Capabilities
- Wind Power Solutions
- TDS50 Installation Instruction
- TDS-DINLINE Surge Suppressor Installation Instructions
- Technical Note TN CR 001, Why Install Surge Protection
- Technical Note TN CR 002, The need for co-ordinated protection
- Technical Note TN CR 003, Where to install SPD's for AC powered electronic equipment
- Technical Note TN CR 005, The Benefits of TD Technology
- Technical Note TN CR 006, SPDs and the Benefits of Filtering
