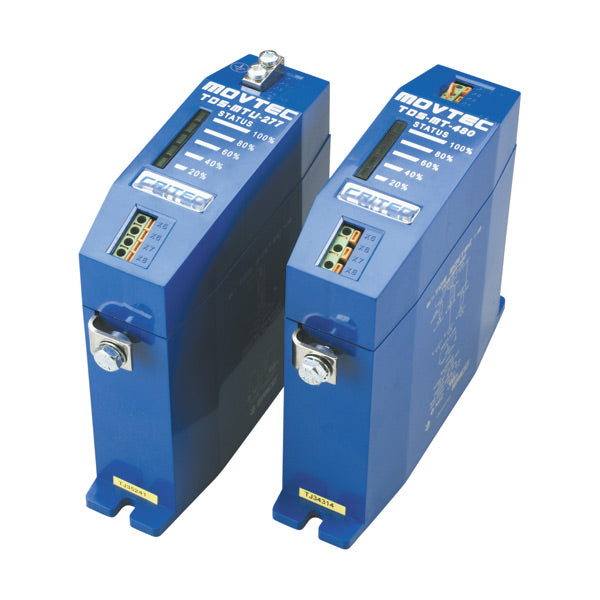

Erico TDSMT120 - GROUNDING - Transient Discriminating MOVTEC
Regular price
$1,177.35
Unit price
Brand: Erico
|
SKU:
9830207
Regular price
$1,177.35
Unit price
Description
Description
Erico TDSMT120 - GROUNDING - Transient Discriminating MOVTEC
Features
- Transient Discriminating (TD) Technology provides increased service life
- Built-in features include TD Technology, thermal protection and short circuit current fusing
- LED status indication and voltage-free contacts provide remote status monitoring
- 100 kA 8/20 ?s maximum surge rating provides protection suitable for smaller main-distribution panels and an extended operational life
Specifications
Specifications
Image 1
| Click image to enlarge. |
|---|
Image 2
| Click image to enlarge. |
|---|
Specifications
| Part Number | TDSMT120 |
|---|---|
| Nominal System Voltage (Un) | 110 - 120 V |
| Nominal Discharge Current (In), Per Mode | 80 kA 8/20 ?s |
| Max Continuous Operating Voltage (Uc) | 170 VAC |
| Stand-off Voltage | 240 V |
| Frequency | 50 – 60 Hz |
| Connection, Stranded | #6 Max |
| Impulse Current (Iimp) | 20 kA 10/350 ?s |
| Max Discharge Current (Imax), Per Mode | 100 kA 8/20 ?s |
| Voltage Protection Rating (VPR) | 400 V @ 3 kA760 V @ 20 kA |
| Aggregate Surge Rating | 200 kA 8/20 ?s |
| Back-Up Overcurrent Protection | 100 A |
| Max Operating Current | 25 mA |
| Protection Modes | Single |
| Status Indication | 5 segment LED bar graph per phase |
| Technology | TD technology with thermal disconnect |
| Temperature | -31 to 131 °F |
| Enclosure Material | UL® 94V-0 Thermoplastic |
| Enclosure Rating | IP 20NEMA®-1 |
| Depth (D) | 5.51" |
| Height (H) | 5.91" |
| Width (W) | 1.77" |
| Unit Weight | 1.32 lb |
| Certification Details | UL® 1449 Edition 3 Recognized Component Type 2 |
| Complies With | ANSI®/IEEE® C62.41.2-2002 Cat A, Cat B, Cat C; ANSI®/IEEE® C62.41.2-2002 Scenario II, Exposure 3, 100 kA 8/20 ?s, 10 kA 10/350 ?s |
| Certifications | C-Tick, UR |
| Standard Packaging Quantity | 1 pc |
| UPC | 78285644096 |
| EAN-13 | 8711893024616 |
Documents and Downloads
Documents and Downloads
- Rail Solutions - Expertly Engineered. Global Capabilities
- Wind Power Solutions
- UR VZCA2.E325047
- nVent ERICO Transient Discriminating Movtec TDS MT
- MOVTECH and TDS-MOVTEC Surge Diverters Installation Instructions
- Technical Note TN CR 001, Why Install Surge Protection
- Technical Note TN CR 002, The need for co-ordinated protection
- Technical Note TN CR 003, Where to install SPD's for AC powered electronic equipment
- Technical Note TN CR 005, The Benefits of TD Technology
