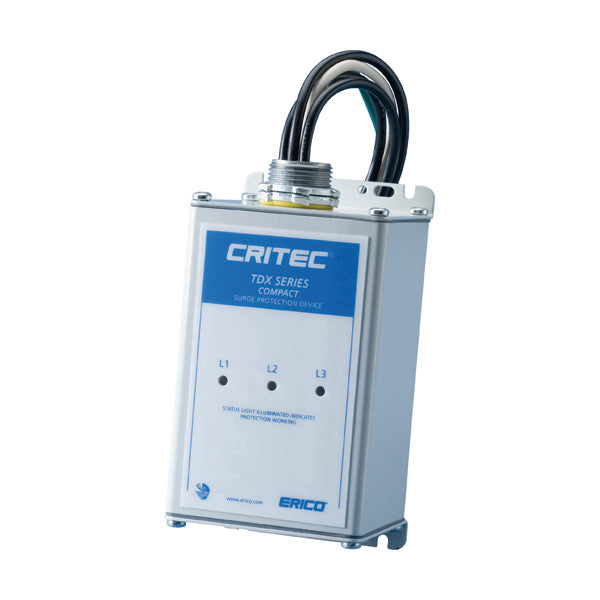

Erico TDX50C120/240 - GROUNDING - Compact TDX Panel Protector, 50 kA
Regular price
$797.30
Unit price
Brand: Erico
|
SKU:
9832603
Regular price
$797.30
Unit price
Description
Description
Erico TDX50C120/240 - GROUNDING - Compact TDX Panel Protector, 50 kA
Features
- Transient Discriminating (TD) Technology provides increased service life
- Built-in features include TD Technology, thermal protection and short circuit current fusing
- Compact NEMA®-4 enclosure design can be flush mounted or installed in a small space
- LED status indication and voltage-free contacts provide remote status monitoring
- 50kA 8/20?s maximum surge rating provides protection suitable for sub-distribution panels and a long operational life
Specifications
Specifications
| Click image to enlarge. |
|---|
Specifications
| Part Number | TDX50C120240 |
|---|---|
| Nominal System Voltage (Un) | 120/240 V |
| Distribution System | 1Ph 3W+G |
| Max Continuous Operating Voltage (Uc) | 170/276 VAC |
| Stand-off Voltage | 240/480 VAC |
| Frequency | 50 – 60 Hz |
| Short Circuit Current Rating (SCCR) | 200 kA |
| Nominal Discharge Current (In), IEC | 40 kA 8/20 ?s |
| Nominal Discharge Current (In), UL | 10 kA 8/20 ?s |
| Max Discharge Current (Imax), Per Phase | 50 kA 8/20 ?s |
| Voltage Protection Rating (VPR), L-N | 600 V @ 3 kA1,200 V @ 20 kA |
| Protection Modes | L-N, L-PE, N-PE |
| Remote Contacts | Yes |
| Status Indication | LED |
| Surge Counter | No |
| Technology | Over-current fusing, TD technology with thermal disconnect |
| Lead Size | #10 |
| Lead Length | 30" |
| Ground Lead Length | 36" |
| Temperature | -40 to 176 °F |
| Enclosure Material | Metal |
| Enclosure Rating | IP 65NEMA®-4 |
| Mounting | 3/4” straight nipple |
| Depth (D) | 3.07" |
| Height (H) | 6.02" |
| Width (W) | 3.31" |
| Unit Weight | 1.54 lb |
| Certification Details | UL® 1449 Edition 4 Type 1/2, 10 kA Mode |
| Complies With | ANSI®/IEEE® C62.41.2-2002 Cat A, Cat B, Cat C; ANSI®/IEEE® C62.41.2-2002 Scenario II, Exposure 2, 50 kA 8/20 ?s, IEC® 61643-1 Class I, Class II |
| Certifications | CE, ERICO TDXUL |
| Standard Packaging Quantity | 1 pc |
| UPC | 78285659312 |
