Erico TMGB-A20L27PT - GROUND BAR - Telecom Main Grounding Busbar, 2...
Regular price
$889.58
Unit price
Brand: Erico
|
SKU:
255807
Regular price
$889.58
Unit price
Description
Description

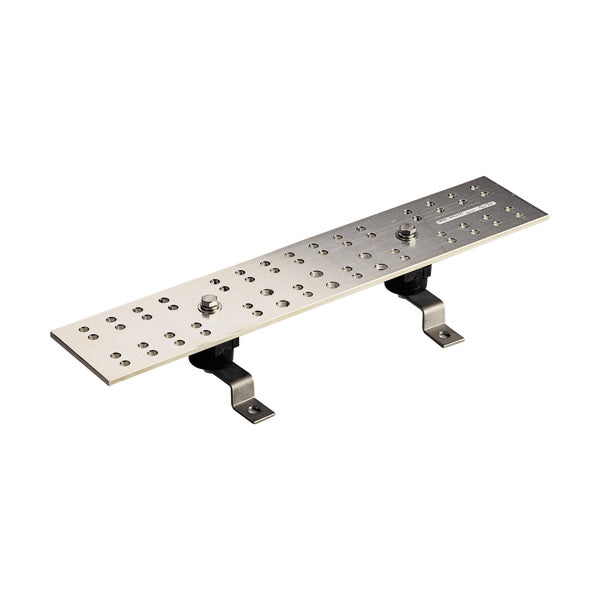

Erico TMGB-A20L27PT - GROUND BAR - Telecom Main Grounding Busbar, 20"
Features
- Meets TIA-607-C and conforms to BICSI® recommendations
- Complies with NEMA® standards
- Accepts two hole lugs with 5/16" or 7/16" bolt holes (hardware not included)
- Telecom grounding busbar splice kits are available to extend the length of the busbar
Specifications
Specifications
| Click image to enlarge. |
|---|
Specifications
| Part Number | TMGBA20L27PT |
|---|---|
| Material | Copper |
| Tin Plating | Yes |
| Width (W) | 4" |
| Thickness (T) | 1/4" |
| Length 1 (L1) | 20" |
| Length 2 (L2) | 9" |
| Hole Size 1 (HS1) | 5/16" |
| Hole Size 1 Number of Pairs | 27 |
| Hole Size 2 (HS2) | 7/16" |
| Hole Size 2 Number of Pairs | 3 |
| A | 1" |
| B | 1 1/8" |
| C | 5/8" |
| D | 5/8" |
| Certifications | cULus |
| Standard Packaging Quantity | 1 pc |
| UPC | 78285644557 |
| EAN-13 | 782856445579 |
Documents and Downloads
Documents and Downloads
- nVent ERICO Grounding, Bonding & Connectivity Products for Datacom Applications
- Rail Solutions - Expertly Engineered. Global Capabilities
- Wind Power Solutions
- Grounding, Bonding, and nVent ERICO Cadweld Solutions Guide
- cUL KDER7.E220029
- UL KDER.E220029
- nVent ERICO Grounding Bus Bars Standard Configurations in Stock
