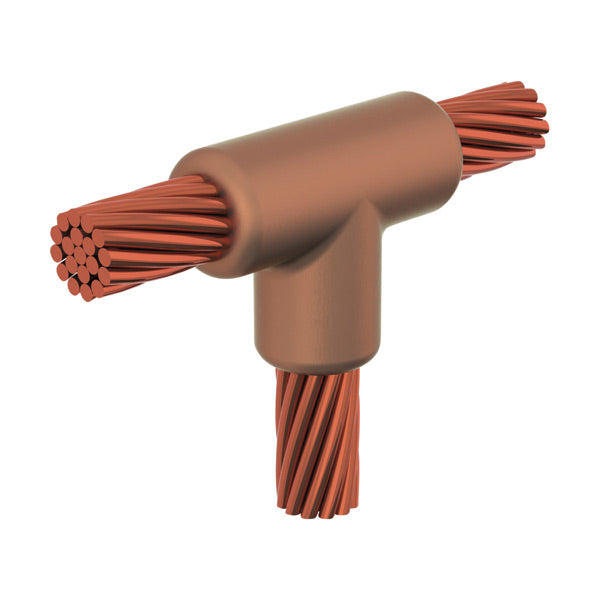

Erico TVCT5T3 - GROUNDING - CADWELD MOLD, CABLE, VERT TEE
Regular price
$177.46
Unit price
Brand: Erico
|
SKU:
9836579
Regular price
$177.46
Unit price
Description
Description
nVent ERICO Cadweld graphite molds are designed and engineered for thousands of connection styles and conductor combinations.
Features
- Forms a permanent, low resistance connection
- Provides a molecular bond
- nVent ERICO Cadweld Exothermic Connections are rated with the same current capacity as the conductor
- Portable installation equipment with no external source of power required
- Installers can be easily trained to make nVent ERICO Cadweld Exothermic Connections
- Connections can be visually inspected
Specifications
Specifications
| Click image to enlarge. |
|---|
Specifications
| Part Number | TVCT5T3 |
|---|---|
| Mold Family | TV |
| Conductor 1 | 15.6 mm Ground Wire |
| Conductor 1 Outer Diameter, Nominal | 0.614" |
| Conductor 2 | 13.2 mm Ground Wire |
| Conductor 2 Outer Diameter, Nominal | 0.520" |
| Split Crucible | No |
| Wear Plates | No |
| Mold Only | No |
| Welding Material | 250 or 250PLUSF20, Sold Separately |
| Handle Clamp | L160, Sold Separately |
| Price Key | C |
| Ease of Use | Difficult |
| Standard Packaging Quantity | 1 pc |
| UPC | 78285685765 |
