Erico UTB110SPM - GROUNDING - Replacement Module for UTB, Single Pair
Regular price
$196.02
Unit price
Brand: Erico
|
SKU:
9830565
Regular price
$196.02
Unit price
Description
Description

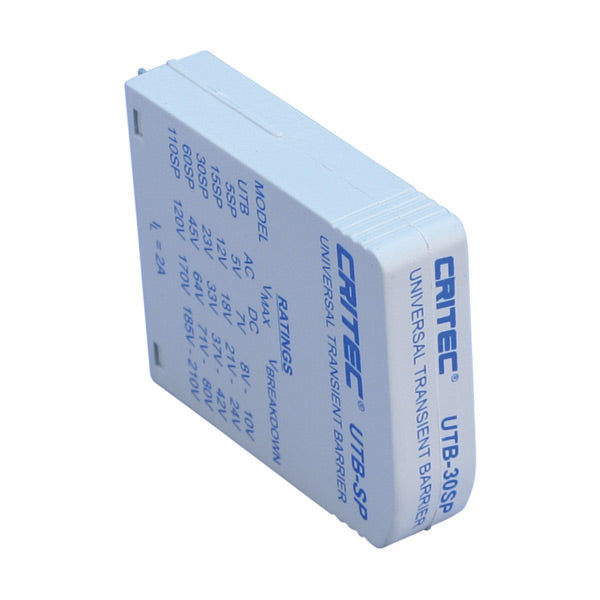

Erico UTB110SPM - GROUNDING - Replacement Module for UTB, Single Pair
Features
- Multi-stage protection and fine over-voltage protection helps ensure lowest residual surge voltages reach sensitive equipment
- Common-mode and differential-mode protection protects against both possible surge conditions
- Surge rating to 20 kA 8/20 ?s is ideal for exposed wiring
Specifications
Specifications
Image 1
| Click image to enlarge. |
|---|
Image 2
| Click image to enlarge. |
|---|
Specifications
| Part Number | UTB110SPM |
|---|---|
| Nominal System Voltage (Un) | 100 - 120 VAC, 60 - 154 VDC |
| Max Continuous Operating Voltage (Uc) | 150 VAC, 170 VDC |
| Rated Load Current (IL) | 2 A |
| Frequency | 3 MHz |
| Loop Resistance | 1 ? |
| Max Discharge Current (Imax), L+L-PE | 20 kA 8/20 ?s |
| Protection Modes | Common, Differential |
| Technology | Gas Discharge Tube (GDT), Metal Oxide Varistor (MOV), Silicon Avalanche Diode (SAD) |
| Voltage Protection Level (Up), L-L | 220 V @ 3 kA |
| Temperature | -4 to 149 °F |
| Enclosure Material | UL® 94V-0 Thermoplastic |
| Depth (D) | 2.06" |
| Height (H) | 1.7" |
| Width (W) | 0.47" |
| Unit Weight | 0.05 lb |
| Complies With | ANSI®/IEEE® C62.41.2-2002 Cat A, Cat B, Cat C |
| Certifications | CE |
| Standard Packaging Quantity | 1 pc |
| UPC | 78285662206 |
| EAN-13 | 8711893097269 |
Documents and Downloads
Documents and Downloads
- Data and Signal Line Protection
- Rail Solutions - Expertly Engineered. Global Capabilities
- Rail Surge Protection Guide
- Technical Note TN CR 001, Why Install Surge Protection
- Technical Note TN CR 002, The need for co-ordinated protection
- Technical Note TN CR 003, Where to install SPD's for AC powered electronic equipment
- Technical Note TN CR 004, How to select SPD's for data, signal and control circuits
- Technical Note TN CR 006, SPDs and the Benefits of Filtering
- Technical Note TN CR 007, - What are clamping voltages, suppressed voltage ratings and let-throughs
