Erico UTB15SP - GROUNDING - Universal Transient Barrier, Single Pair
Regular price
$227.48
Unit price
Brand: Erico
|
SKU:
9832611
Regular price
$227.48
Unit price
Description
Description

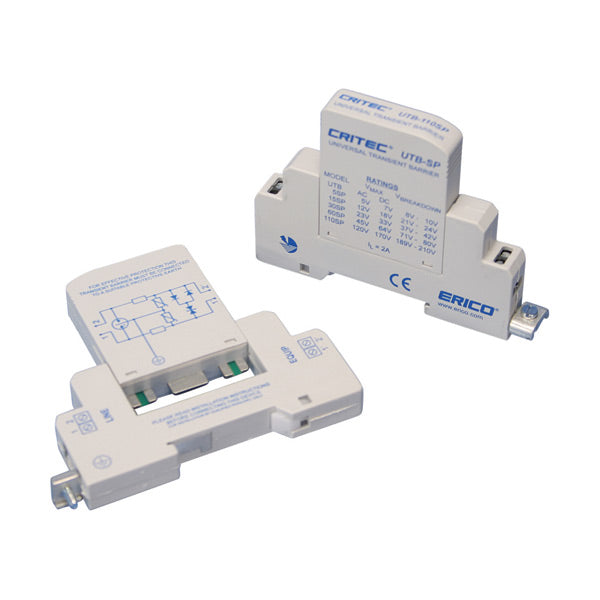

Erico UTB15SP - GROUNDING - Universal Transient Barrier, Single Pair
Features
- Compact design universal transient barrier provides protection of low-voltage circuits and transducers
- Separate plug and base design allows hot swappable module replacement
- Multi-stage protection and fine over-voltage protection helps ensure lowest residual surge voltages reach sensitive equipment
- Common-mode and differential-mode protection protects against both possible surge conditions
- Surge rating to 20 kA 8/20 ?s is ideal for exposed wiring
- Allows for protection of 25 analog signals or 50 digital signals per linear foot (0,3 m) of DIN rail space
Specifications
Specifications
Image 1
| Click image to enlarge. |
|---|
Image 2
| Click image to enlarge. |
|---|
Specifications
| Part Number | UTB15SP |
|---|---|
| Nominal System Voltage (Un) | 3 - 10 VAC, 5 - 15 VDC |
| Max Continuous Operating Voltage (Uc) | 12 VAC, 18 VDC |
| Rated Load Current (IL) | 2 A |
| Frequency | 1 MHz |
| Loop Resistance | 1 ? |
| Max Discharge Current (Imax), L+L-PE | 20 kA 8/20 ?s |
| Protection Modes | Common, Differential |
| Technology | Gas Discharge Tube (GDT), Metal Oxide Varistor (MOV), Silicon Avalanche Diode (SAD) |
| Voltage Protection Level (Up), L-L | 25 V @ 3 kA |
| Connection, Stranded | #18 – #12 |
| Mounting | 35 mm top hat DIN rail |
| Temperature | -4 to 149 °F |
| Enclosure Material | UL® 94V-0 Thermoplastic |
| Enclosure Rating | IP 20NEMA®-1 |
| Depth (D) | 2.83" |
| Height (H) | 3.54" |
| Width (W) | 0.47" |
| Unit Weight | 0.15 lb |
| Certification Details | UL® 497B |
| Complies With | ANSI®/IEEE® C62.41.2-2002 Cat A, Cat B, Cat C |
| Replacement Module | UTB15SPM |
| Certifications | CEUR |
| Standard Packaging Quantity | 1 pc |
| UPC | 78285662197 |
| EAN-13 | 8711893097184 |
