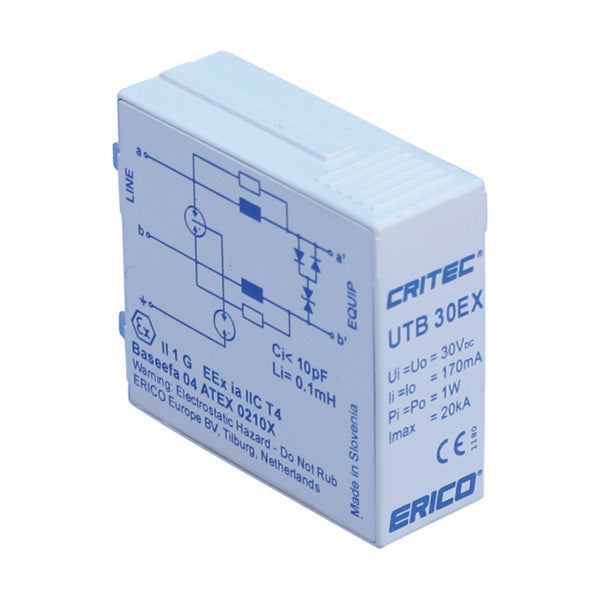

Erico UTBTM - GROUNDING - Replacement Module for UTB, Modem/Telephone
Regular price
$182.71
Unit price
Brand: Erico
|
SKU:
9831573
Regular price
$182.71
Unit price
Description
Description
Erico UTBTM - GROUNDING - Replacement Module for UTB, Modem/Telephone
Features
- General purpose barrier provides protection of low-voltage circuits and transducers
- Separate plug and base design allows hot swappable module replacement
- Multi-stage protection and fine over-voltage protection helps ensure lowest residual surge voltages reach sensitive equipment
Specifications
Specifications
Image 1
| Click image to enlarge. |
|---|
Image 2
| Click image to enlarge. |
|---|
Specifications
| Part Number | UTBTM |
|---|---|
| Rated Load Current (IL) | 160 mA |
| Frequency | 15 MHz |
| Loop Resistance | 1 ? |
| Max Discharge Current (Imax), Per Mode | 0.5 kA 8/20 ?s |
| Technology | Gas Discharge Tube (GDT)PTC |
| Voltage Protection Level (Up), L-L | 480 V @ 3 kA |
| Temperature | -4 to 149 °F |
| Enclosure Material | UL® 94V-0 Thermoplastic |
| Depth (D) | 1.92" |
| Height (H) | 1.78" |
| Width (W) | 0.7" |
| Unit Weight | 0.05 lb |
| Complies With | ANSI®/IEEE® C62.41.2-2002 Cat A, Cat B, Cat C |
| Certifications | CE |
| Standard Packaging Quantity | 1 pc |
| UPC | 78285647262 |
| EAN-13 | 8711893014563 |
Documents and Downloads
Documents and Downloads
- Rail Solutions - Expertly Engineered. Global Capabilities
- Rail Surge Protection Guide
- Technical Note TN CR 001, Why Install Surge Protection
- Technical Note TN CR 002, The need for co-ordinated protection
- Technical Note TN CR 003, Where to install SPD's for AC powered electronic equipment
- Technical Note TN CR 004, How to select SPD's for data, signal and control circuits
- Technical Note TN CR 006, SPDs and the Benefits of Filtering
- Technical Note TN CR 007, - What are clamping voltages, suppressed voltage ratings and let-throughs
- Technical Note TN CR 009, What national standards are applicable to SPD's
