Brand: Erico
|
SKU:
661498

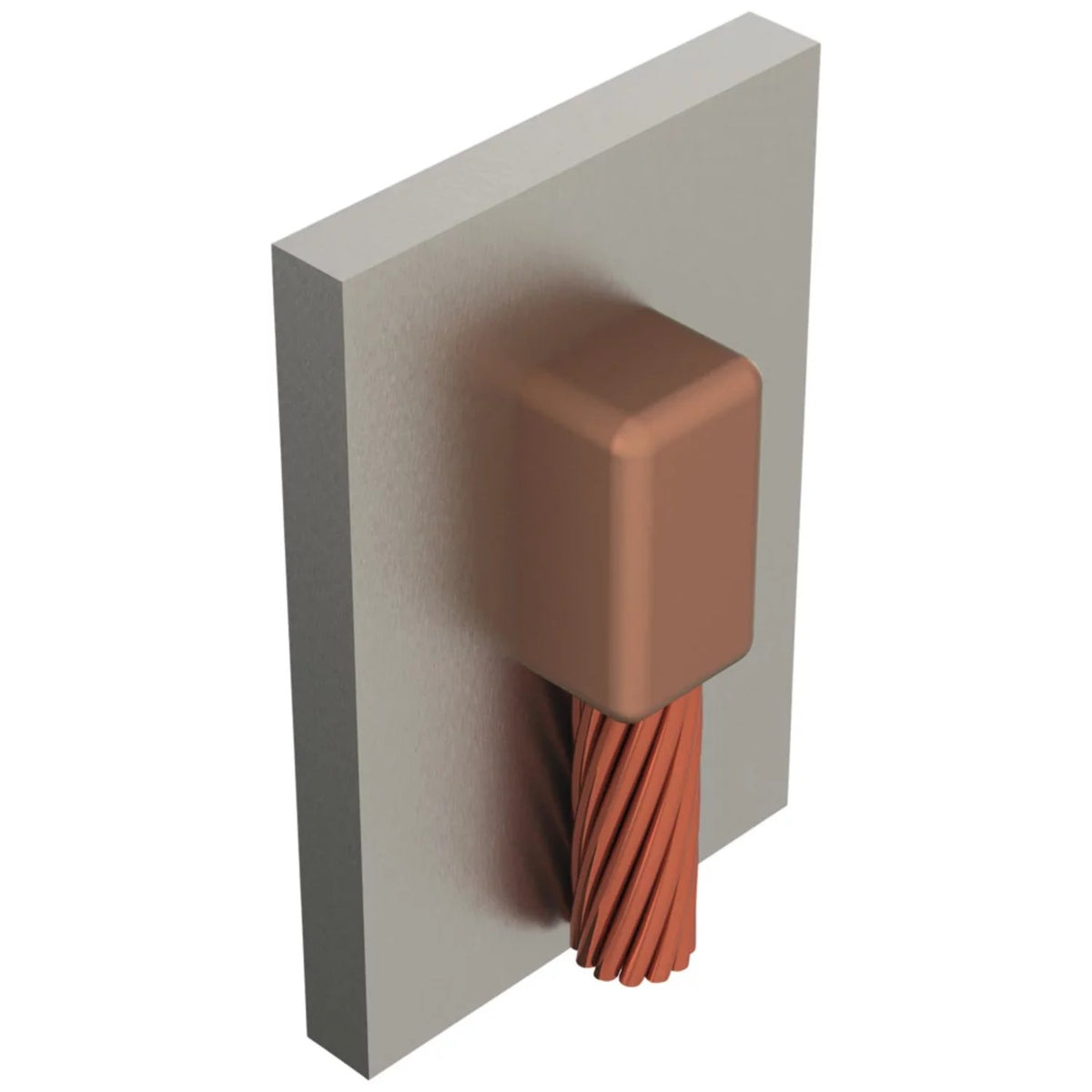

Erico VBCY6 | Cable to Steel, VB, Steel Pipe or Flat Surface, 120 mm² Concentric, 24" Min Pipe
Regular price
$300.08
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Erico VBCY6 | Cable to Steel, VB, Steel Pipe or Flat Surface, 120 m...
Regular price
$300.08
Unit price
Description
Description
Erico VBCY6 | Cable to Steel, VB, Steel Pipe or Flat Surface, 120 mm² Concentric, 24" Min Pipe.
nVent ERICO Cadweld graphite molds are designed and engineered for thousands of connection styles and conductor combinations.
Erico - VBCY6 - Features
- Forms a permanent, low resistance connection
- Provides a molecular bond
- nVent ERICO Cadweld Exothermic Connections are rated with the same current capacity as the conductor
- Portable installation equipment with no external source of power required
- Installers can be easily trained to make nVent ERICO Cadweld Exothermic Connections
- Connections can be visually inspected
Specifications
Specifications
Erico - VBCY6 - Specifications
| Mold Family | VB |
|---|---|
| Connects To | Steel Pipe or Flat Surface |
| Conductor Size | 120 mm² Concentric |
| Conductor Outer Diameter, Nominal | 0.57" |
| Pipe Size | 24" Min |
| Outer Diameter (OD) | 24" Min |
| Kit | No |
| Mold Split | Vertical |
| Split Crucible | No |
| Wear Plates | No |
| Mold Only | No |
| Welding Material | 200 or 200PLUSF20, Sold Separately |
| Handle Clamp | L160 or B396, Sold Separately |
| Price Key | C |
| Ease of Use | Easy |
| UPC | 782856247661 |
| Packing Quantity | 1.0000 |
