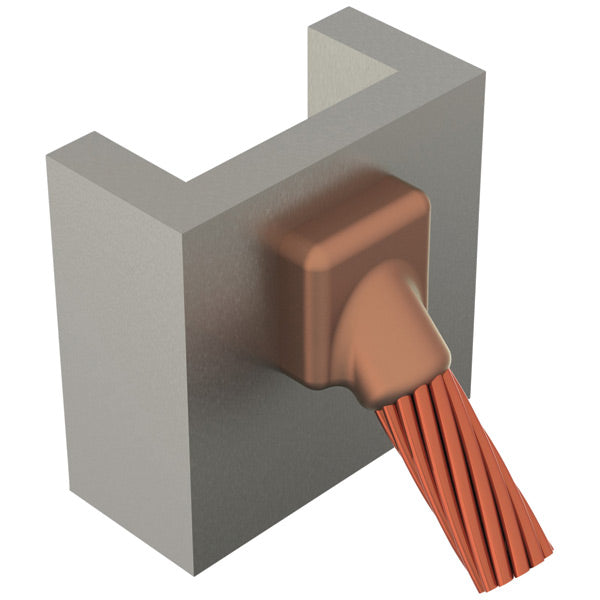

Erico VSC3DV5 - GROUNDING - CADWELD MOLD, CABLE TO VERT
Regular price
$300.08
Unit price
Brand: Erico
|
SKU:
9838772
Regular price
$300.08
Unit price
Description
Description
nVent ERICO Cadweld graphite molds are designed and engineered for thousands of connection styles and conductor combinations.
Features
- Forms a permanent, low resistance connection
- Provides a molecular bond
- nVent ERICO Cadweld Exothermic Connections are rated with the same current capacity as the conductor
- Portable installation equipment with no external source of power required
- Installers can be easily trained to make nVent ERICO Cadweld Exothermic Connections
- Connections can be visually inspected
Specifications
Specifications
| Click image to enlarge. |
|---|
Specifications
| Part Number | VSC3DV5 |
|---|---|
| Mold Family | VS |
| Connects To | Steel Pipe |
| Conductor Size | 350 kcmil Concentric |
| Conductor Outer Diameter, Nominal | 0.681" |
| Pipe Size | 5" |
| Outer Diameter | 5.563" |
| Kit | No |
| Split Crucible | No |
| Wear Plates | No |
| Mold Only | No |
| Welding Material | 200 or 200PLUSF20, Sold Separately |
| Handle Clamp | L160, B160V and B158, Sold Separately |
| Price Key | C |
| Ease of Use | Preferred |
| Standard Packaging Quantity | 1 pc |
| UPC | 78285679504 |
