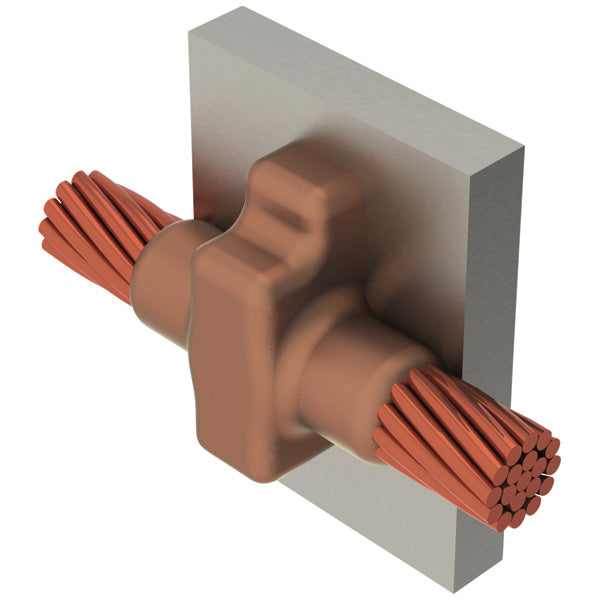

Erico VTD3QV10 - GROUNDING - CADWELD MOLD, CABLE TO VERT
Regular price
$376.35
Unit price
Brand: Erico
|
SKU:
9839133
Regular price
$376.35
Unit price
Description
Description
nVent ERICO Cadweld graphite molds are designed and engineered for thousands of connection styles and conductor combinations.
Features
- Forms a permanent, low resistance connection
- Provides a molecular bond
- nVent ERICO Cadweld Exothermic Connections are rated with the same current capacity as the conductor
- Portable installation equipment with no external source of power required
- Installers can be easily trained to make nVent ERICO Cadweld Exothermic Connections
- Connections can be visually inspected
Specifications
Specifications
| Click image to enlarge. |
|---|
Specifications
| Part Number | VTD3QV10 |
|---|---|
| Mold Family | VT |
| Connects To | Steel Pipe |
| Conductor Size | 500 kcmil Concentric |
| Conductor Outer Diameter, Nominal | 0.813" |
| Pipe Size | 10" |
| Outer Diameter | 10 3/4" |
| Kit | No |
| Split Crucible | No |
| Wear Plates | No |
| Mold Only | No |
| Welding Material | 500 or 500PLUSF20, Sold Separately |
| Handle Clamp | L159 and B159VT, Sold Separately |
| Price Key | D |
| Ease of Use | Preferred |
| Standard Packaging Quantity | 1 pc |
| UPC | 78285685590 |
