Erico VVR9FV2W - GROUNDING - CADWELD MOLD, CABLE TO VERT
Regular price
$257.59
Unit price
Brand: Erico
|
SKU:
9839602
Regular price
$257.59
Unit price
Description
Description

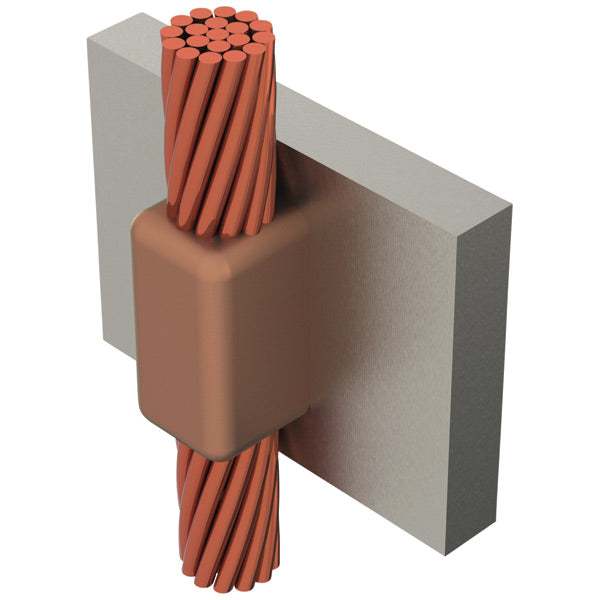

nVent ERICO Cadweld graphite molds are designed and engineered for thousands of connection styles and conductor combinations.
Features
- Forms a permanent, low resistance connection
- Provides a molecular bond
- nVent ERICO Cadweld Exothermic Connections are rated with the same current capacity as the conductor
- Portable installation equipment with no external source of power required
- Installers can be easily trained to make nVent ERICO Cadweld Exothermic Connections
- Connections can be visually inspected
Specifications
Specifications
| Click image to enlarge. |
|---|
Specifications
| Part Number | VVR9FV2W |
|---|---|
| Mold Family | VV |
| Connects To | Steel Pipe |
| Conductor Size | 19/#9 Copperweld |
| Conductor Outer Diameter, Nominal | 0.572" |
| Pipe Size | 2" |
| Outer Diameter | 2 3/8" |
| Kit | No |
| Split Crucible | No |
| Wear Plates | Yes |
| Mold Only | No |
| Welding Material | 250 or 250PLUSF20, Sold Separately |
| Handle Clamp | L160 and B160V, Sold Separately |
| Price Key | R |
| Ease of Use | Preferred |
| Standard Packaging Quantity | 1 pc |
| UPC | 78285661483 |
Documents and Downloads
Documents and Downloads
- nVent ERICO Cadweld Welded Electrical Connections
- nVent ERICO Cadweld Permanent Grounding Connections meet the requirements of IEEE STD. 837-2014
- nVent ERICO Distribution Pole Solutions
- Your Trusted Source for Grounding & Bonding
- ERICO CADWELD Type VV Connection
- Effect of CADWELD Connections on Galvanized Pipe - Test No. 53d
