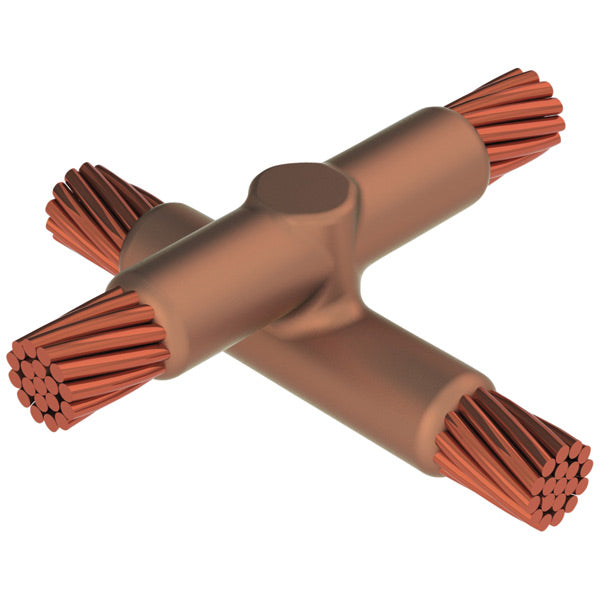

Erico XBM3A2L - GROUNDING - CADWELD MOLD, CABLE, HORZ
Regular price
$898.45
Unit price
Brand: Erico
|
SKU:
9831015
Regular price
$898.45
Unit price
Description
Description
nVent ERICO Cadweld graphite molds are designed and engineered for thousands of connection styles and conductor combinations.
Features
- Forms a permanent, low resistance connection
- Provides a molecular bond
- nVent ERICO Cadweld Exothermic Connections are rated with the same current capacity as the conductor
- Portable installation equipment with no external source of power required
- Installers can be easily trained to make nVent ERICO Cadweld Exothermic Connections
- Connections can be visually inspected
Specifications
Specifications
| Click image to enlarge. |
|---|
Specifications
| Part Number | XBM3A2L |
|---|---|
| Mold Family | XB |
| Conductor 1 | 300 kcmil Concentric |
| Conductor 1 Outer Diameter, Nominal | 0.63" |
| Conductor 2 | 3/0 Concentric |
| Conductor 2 Outer Diameter, Nominal | 0.47" |
| Split Crucible | No |
| Wear Plates | No |
| Mold Only | No |
| Welding Material | 150 x 2 or 300PLUSF20, Sold Separately |
| Frame | Attached |
| Price Key | M |
| Ease of Use | Preferred |
| Certifications | cULus |
| Standard Packaging Quantity | 1 pc |
| UPC | 78285627938 |
