Brand: Erico | SKU: 9831215

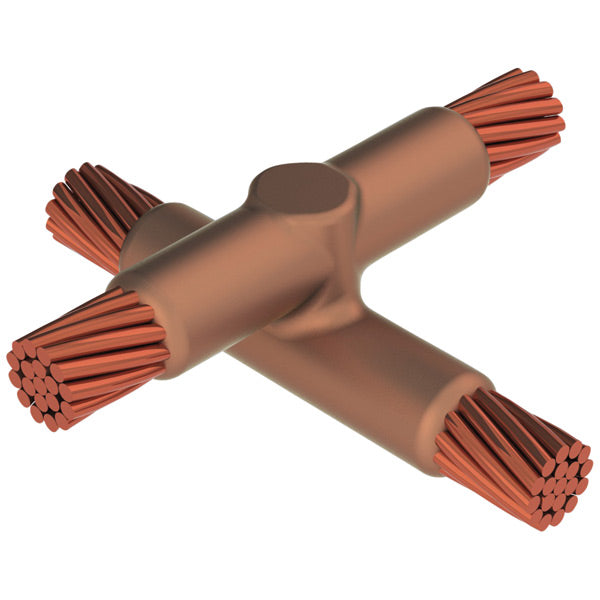

Erico XBQY5Y5 - GROUNDING - CADWELD MOLD, CABLE, HORZ

Name: Erico XBQY5Y5 - GROUNDING - CADWELD MOLD, CABLE, HORZ
Brand: Anixter
SKU: 9831215
Price: 576.83 USD
Availability: InStock

$576.83

Shipping calculated at checkout.

Description

nVent ERICO Cadweld graphite molds are designed and engineered for thousands of connection styles and conductor combinations.

Forms a permanent, low resistance connection
Provides a molecular bond
nVent ERICO Cadweld Exothermic Connections are rated with the same current capacity as the conductor
Portable installation equipment with no external source of power required
Installers can be easily trained to make nVent ERICO Cadweld Exothermic Connections
Connections can be visually inspected

Click image to enlarge.

Part Number	XBQY5Y5
Mold Family	XB
Conductor 1	95 mm² Concentric
Conductor 1 Outer Diameter, Nominal	0.505"
Conductor 2	95 mm² Concentric
Conductor 2 Outer Diameter, Nominal	0.505"
Split Crucible	No
Wear Plates	No
Mold Only	No
Welding Material	250 or 250PLUSF20, Sold Separately
Handle Clamp	L160, Sold Separately
Price Key	Q
Ease of Use	Preferred
Certifications	cULus
Standard Packaging Quantity	1 pc
UPC	78285646231
EAN-13	8711893031492
