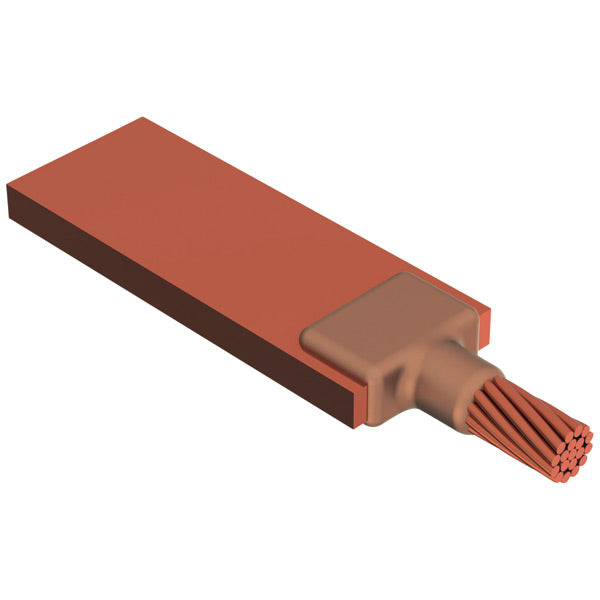

Erico XLLAP1HAAM - GROUNDING - CADWELD MOLD, Cable to Lug or Busbar
Regular price
$264.99
Unit price
Brand: Erico
|
SKU:
9837813
Regular price
$264.99
Unit price
Description
Description
Developed in 1988, nVent ERICO Cadweld Exolon connections represented a significant advancement in welded electrical connections for sensitive indoor applications like data centers, hospitals, and other clean room environments. The virtual elimination of smoke and a unique electronic starting system makes this an ideal solution for sensitive applications. Each nVent ERICO Cadweld Exolon package contains ceramic filters that produce an extremely low emission connection.
Features
- Forms a permanent, low resistance connection
- Provides a molecular bond
- nVent ERICO Cadweld Exothermic Connections are rated with the same current capacity as the conductor
- Portable installation equipment with no external source of power required
- Installers can be easily trained to make nVent ERICO Cadweld Exothermic Connections
- Connections can be visually inspected
- Mold Families LA and LE can be used with straight or offset lugs
Specifications
Specifications
| Click image to enlarge. |
|---|
Specifications
| Part Number | XLLAP1HAAM |
|---|---|
| Mold Family | LA |
| Lug/Busbar Size | 1/16" x 1/2" |
| Conductor Size | #6 Concentric |
| Conductor Outer Diameter, Nominal | 0.184" |
| Split Crucible | No |
| Wear Plates | No |
| Mold Only | Yes |
| Welding Material | XL25, Sold Separately |
| Handle Clamp | XLB399B, Sold Separately |
| Conductor Sleeve | B112, Sold Separately |
| Price Key | XLP |
| Ease of Use | Preferred |
| Certifications | cULus |
| Standard Packaging Quantity | 1 pc |
| UPC | 78285678023 |
Documents and Downloads
Documents and Downloads
- cUL KDER7.E220029
- UL KDER.E220029
- nVent ERICO Cadweld Welded Electrical Connections
- nVent ERICO Cadweld Permanent Grounding Connections meet the requirements of IEEE STD. 837-2014
- nVent ERICO Distribution Pole Solutions
- Your Trusted Source for Grounding & Bonding
- Cable to Lug Horizontal Splice
- Cable to Lug Horizontal Splice
- IP6548 Cable to Lug Horizontal Tap Perpendicular to Flange, Instruction Sheet IP6548_C
