Brand: Erico | SKU: 9837819

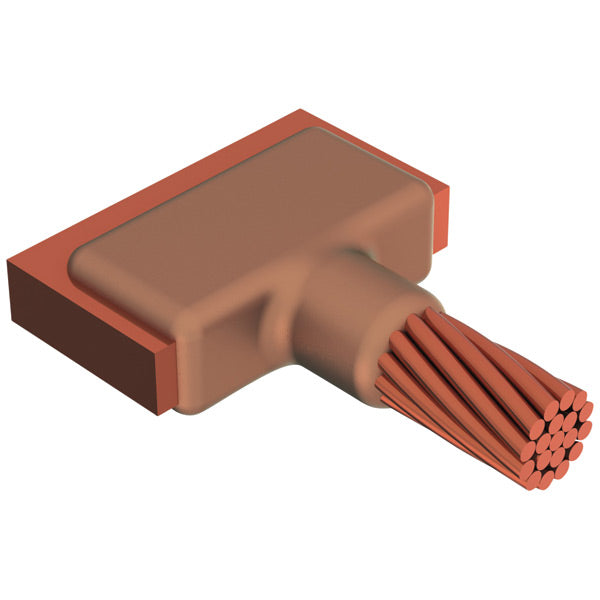

Erico XLLJCEG2G - GROUNDING - CADWELD MOLD, Cable to Lug or Busbar

$355.74

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

Developed in 1988, nVent ERICO Cadweld Exolon connections represented a significant advancement in welded electrical connections for sensitive indoor applications like data centers, hospitals, and other clean room environments. The virtual elimination of smoke and a unique electronic starting system makes this an ideal solution for sensitive applications. Each nVent ERICO Cadweld Exolon package contains ceramic filters that produce an extremely low emission connection.

Features

Forms a permanent, low resistance connection
Provides a molecular bond
nVent ERICO Cadweld Exothermic Connections are rated with the same current capacity as the conductor
Portable installation equipment with no external source of power required
Installers can be easily trained to make nVent ERICO Cadweld Exothermic Connections
Connections can be visually inspected
Mold Families LA and LE can be used with straight or offset lugs

Specifications


Click image to enlarge.

Specifications

Part Number	XLLJCEG2G
Mold Family	LJ
Lug/Busbar Size	1/4" x 1 1/2" and wider
Conductor Size	2/0 Concentric
Conductor Outer Diameter, Nominal	0.418"
Center to Center Weld Distance	1 3/4" Min
Split Crucible	No
Wear Plates	No
Mold Only	No
Welding Material	XL90, Sold Separately
Handle Clamp	XLL160, Sold Separately
Price Key	XLC
Ease of Use	Preferred
Certifications	cULus
Standard Packaging Quantity	1 pc
UPC	78285656148
