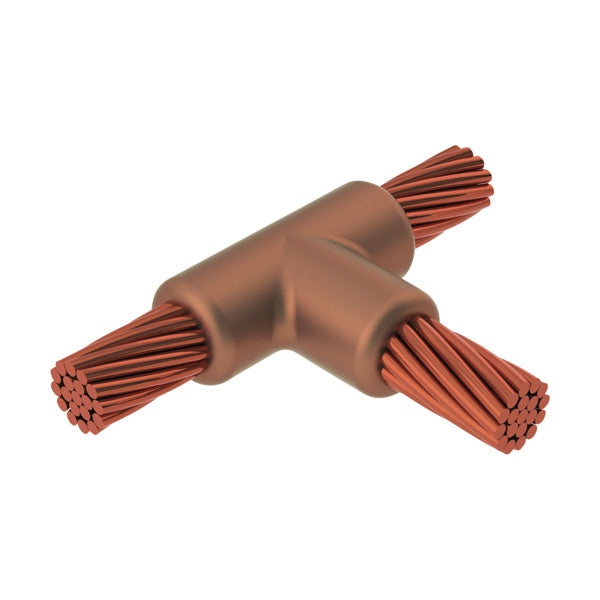

Erico XLTAD3Q3QS - GROUNDING - CADWELD MOLD, CABLE, HORZ TEE
Regular price
$446.47
Unit price
Brand: Erico
|
SKU:
9826224
Regular price
$446.47
Unit price
Description
Description
Developed in 1988, nVent ERICO Cadweld Exolon connections represented a significant advancement in welded electrical connections for sensitive indoor applications like data centers, hospitals, and other clean room environments. The virtual elimination of smoke and a unique electronic starting system makes this an ideal solution for sensitive applications. Each nVent ERICO Cadweld Exolon package contains ceramic filters that produce an extremely low emission connection.
Features
- Forms a permanent, low resistance connection
- Provides a molecular bond
- nVent ERICO Cadweld Exothermic Connections are rated with the same current capacity as the conductor
- Portable installation equipment with no external source of power required
- Installers can be easily trained to make nVent ERICO Cadweld Exothermic Connections
- Connections can be visually inspected
Specifications
Specifications
| Click image to enlarge. |
|---|
Specifications
| Part Number | XLTAD3Q3QS |
|---|---|
| Mold Family | TA |
| Conductor 1 | 500 kcmil Concentric |
| Conductor 1 Outer Diameter, Nominal | 0.813" |
| Conductor 2 | 500 kcmil Concentric |
| Conductor 2 Outer Diameter, Nominal | 0.813" |
| Split Crucible | No |
| Wear Plates | No |
| Mold Only | No |
| Welding Material | XL300, Sold Separately |
| Handle Clamp | XLL159, Sold Separately |
| Price Key | XLD |
| Baffle Assembly | XLB973A1, Sold Separately |
| Ease of Use | Preferred |
| Standard Packaging Quantity | 1 pc |
| UPC | 78285656247 |
