Description
Description

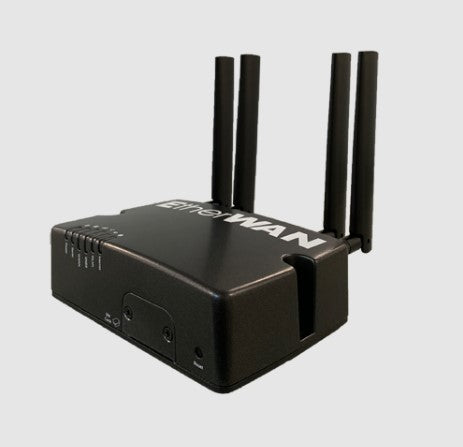

EtherWAN's C4G Series is a high performance ruggedized Dual-SIM 4G router, developed for the world's most demanding mission critical applications, connecting network assets and infrastructures in fixed and mobile (vehicle/ train/subway/health) deployments for public, transit (i.e. stop lights), industrial equipment (i.e. video surveillance), field (i.e. oil pipes) and health (i.e. hospitals) deployments. The C4G Series offers extensible multi-network connectivity from 1 to 4 Ethernet ports: Dual-SIM Cellular (up to CAT12 / 600Mbps), Wi-Fi AC (up to 866Mbps) & Ethernet (1Gbps ports), USB, RS232, RS485 & I/O ports supporting vehicle power connectivity and GNSS (GPS, Galileo, Glonass, Beidou). The C4G Series comes in two enclosure types: a) die cast aluminum enclosure with optional DIN Rail bracket and b) native DIN Rail industrial-grade enclosure. The router supports best-in-class link protection to ensure secure connectivity for all field applications and mobile assets through Dual-SIM and multiple diversity protocols.
Etherwan Systems - C4G-M-4P6FW - Features
- High Capacity Router Ultra Low Power
- Water and Dust Resistant with Field-Proven Cellular/4G Connectivity
- Leading Edge Security with 2 Factor Authentication
Specifications
Specifications
Etherwan Systems - C4G-M-4P6FW - Specifications
| Functionality | Bridging, Switching, Routing |
|---|---|
| Routing | IPv4/IPv6, Static Routing, RIP/RIPNg, NAT, OSPFv3, BGP-4, IPv6 Encapsulations (GRE, 6in4), Port Routing, RAW Connections |
| IP Applications | DDNS, DNS Proxy/Spoofing, DHCP/DHCPv6 server, relay, client, Opt. 82, NTP, SNTP |
| Diversity | Dual-SIM, Static Routing with Primary/Backup route, VPN Failover |
| Ports | 1, 2 or 4 Ethernet Giga, USB-C (5Gbps), RS232, RS485, I/O and I/O Vehicle Power Monitoring |
| Operating Temp | -40 to 70°C/-40 to 158°F (MIL-STD-810G) |
| Operating Humidity | 0% to 95% non-condensing |
| Operating Altitude | <3000m/10,000ft |
| Power Input | 12/24/48VDC Nominal (7 to 36 VDC Range) |
