Etherwan Systems ED3541 | Hardened 10/100BASE-TX Ethernet Extender
Regular price
$595.00
Unit price
Brand: Etherwan Systems
|
SKU:
10099613
Regular price
$595.00
Unit price
Description
Description

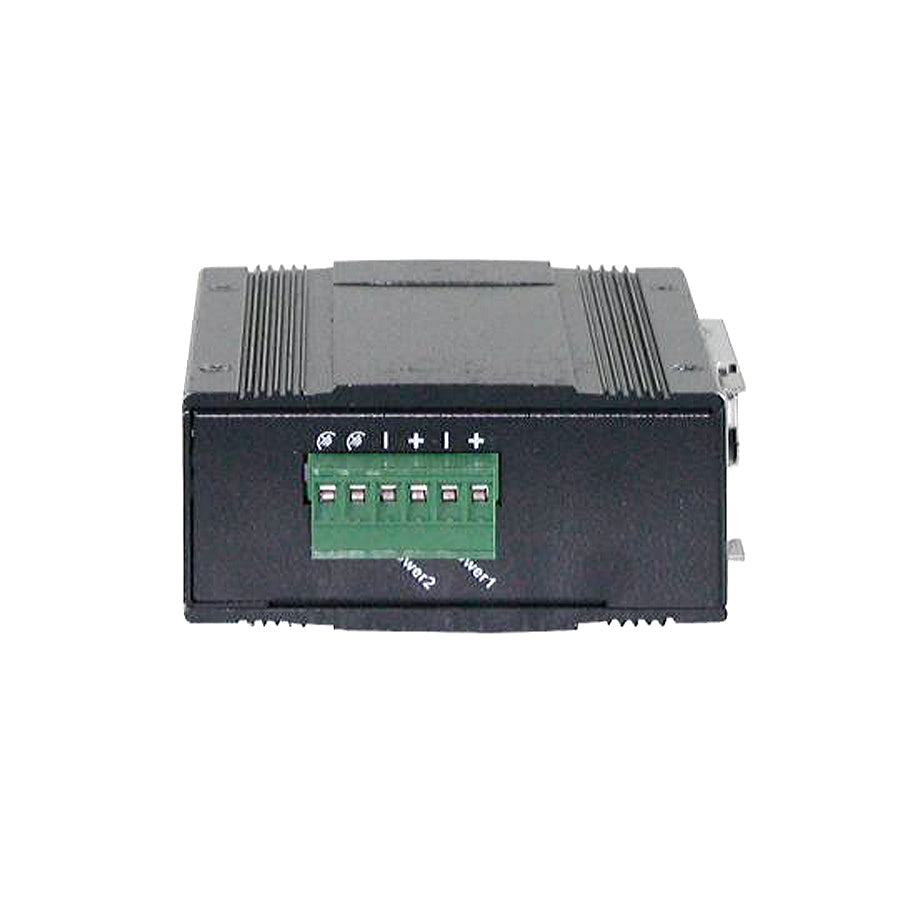

Etherwan Systems ED3541 | Hardened 10/100BASE-TX Ethernet Extender
The ED3541 Ethernet extender allows the extension of IP services beyond normal Ethernet distance limitations without changing cables, breaking the 100-meter Ethernet barrier.
The ED3541's hardened design features high shock and vibration, electrical noise immunity, a wide operating temperature range from -40 to 75°C, and ruggedized aluminum housing. The ED3541 is the ideal Ethernet extender for environments where connectivity is crucial.
Specifications
Specifications
Etherwan Systems - ED3541 - Specifications
| Manufacturer Part Number | ED3541 |
|---|---|
| Brand Name | Etherwan Systems |
| Item Description | Hardened 10/100BASE-TX Ethernet Extender |
| Port | One RJ-45 Port |
| Speed | 10/100 Mbps |
| Distance | 100 meters (328 ft.) |
| Cable | 10BASE-T: UTP Cat. 3, 4, 5 (2-pair wire); 100BASE-TX: UTP Cat. 5 (4-pair wire) |
| Casing Material | Aluminum |
| Dimensions (W × D × H) | 42 x 90 x 100 mm (1.65 x 3.54 x 3.94 in) |
| Weight | 0.41 kg (0.9 lbs) |
| Installation Type | DIN-rail Mounting (Top Hat Type 35 mm) |
| Input | 12–48 VDC Redundant (Terminal Block) |
| Power Consumption | 4.56 W Max.; 0.38 A @ 12 VDC, 0.07 A @ 48 VDC |
| Operating Temperature | -40 °C to 75 °C (-40 °F to 167 °F) |
