Brand: Etherwan Systems
|
SKU:
10310522

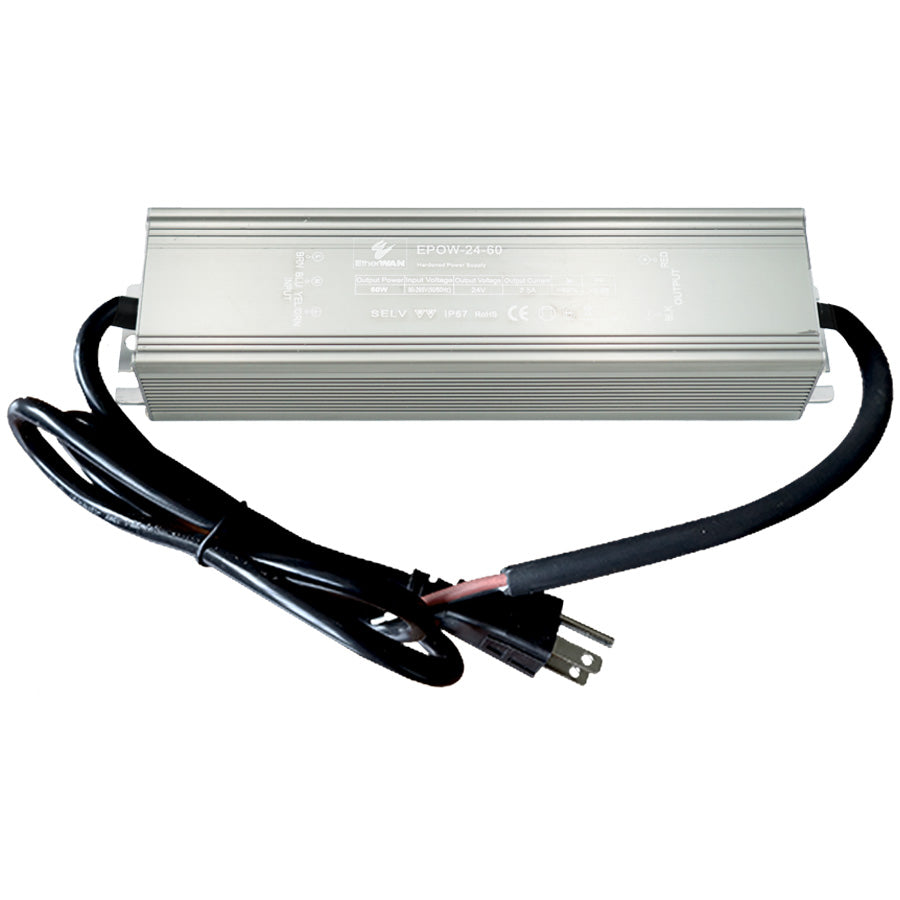

Etherwan Systems EPOW-24-60 | Hardened NEMA TS2 Power Supply 24V 60W
Regular price
$180.56
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Etherwan Systems EPOW-24-60 | Hardened NEMA TS2 Power Supply 24V 60W
Regular price
$180.56
Unit price
Brand: Etherwan Systems
|
SKU:
10310522
Regular price
$180.56
Unit price
Shipping calculated at checkout.
Description
Description
With a wide operating temperature range of -40 to 75°C (-40 to 167°F) and built with an aluminum fanless design, EtherWAN’s EPOW-24-60 is a 24V 60W hardened power supply designed to operate in the most extreme environments. The EPOW-24-60 has a 60W power budget and built in over-voltage and short-current protection, making it a perfect and reliable solution for PoE applications.
Etherwan Systems - EPOW-24-60 - Features
- Active built-in PFC for max power distribution efficiency
- Constant voltage across output terminal
- Wide operating temperature range -40 to 75°C (-40 to 167°F)
- Fanless operation
- IP67 total dust protection and water resistance
- Complies with NEMA TS1 & TS2 electrical and temperature requirements for traffic control equipment
- High impact, thermal shock, and electrical noise resistance
- Easy Install
- Mounting holes to install outdoors and or in cabinets
Specifications
Specifications
Etherwan Systems - EPOW-24-60 - Specifications
| Input | 100-277 VAC |
|---|---|
| Output | 24 VDC |
| Protection | <305 VAC |
| Casing Material | Aluminum |
| IP Rating | IP67 (Dust Tight and Waterproof) |
| Dimensions | 180 x 44 x 32mm (W x D x H); 7.09" x 1.74” x 1.26" |
| Weight | 1.32lbs (0.6kg) |
| Installation Type | Wall mounting |
| Operating Temp. | -40 to 75°C (-40 to 167°F) |
| Storage Temp. | -45 to 85°C (-49 to 185°F) |
| Relative Humidity | 10% to 95% (non-condensing) |
| Operation Humidity | 20-90% |
| Standard | EN 61347-1; EN 61347-2-13; EN 62493 |
