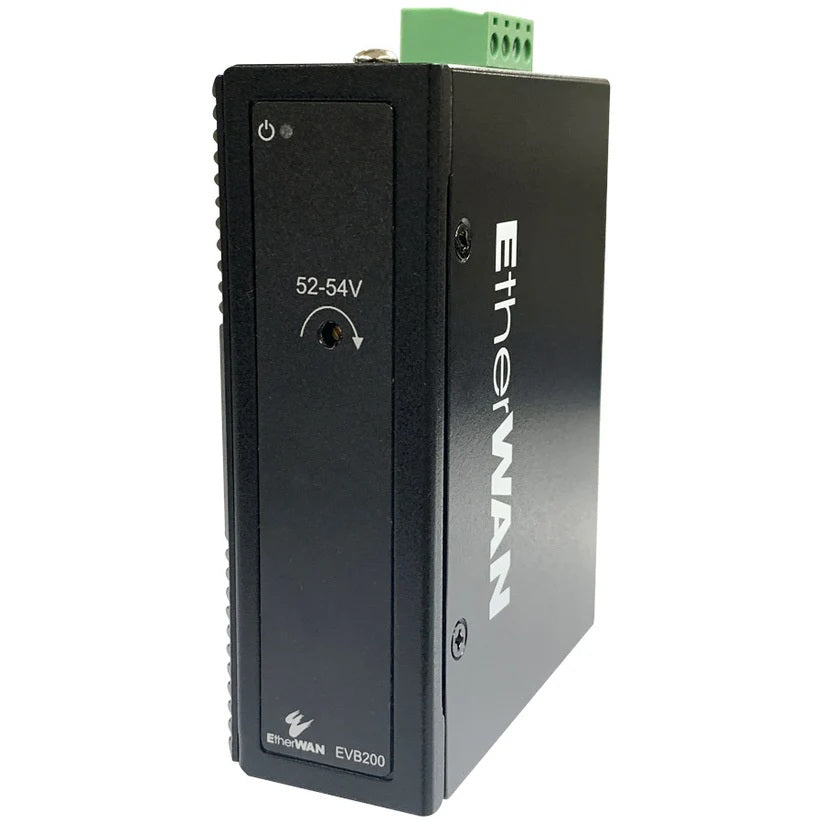

Etherwan Systems EVB200 | Hardened Voltage Booster for PoE Applicat...
Description
Description
The EVB200 voltage booster is a hardened device for raising the input voltage to provide a steady voltage level suitable for power over ethernet (PoE) devices. With an input range of 12-24VDC, a max of 100W of power is provided at 52-54VDC.
A range of 24-48VDC provides 200W max at 52-54VDC. The output voltage can be adjusted with the voltage knob. The power booster ensures reliable operation in harsh environments and is a perfect addition to applications such as solar where 12V or 24V are most common, but PoE is needed.
Etherwan Systems - EVB200 - Features
- Delivers 100W Max @ 12V-24VDC input range & 200W max @ 24-48VDC input range
- Boosts 12-24VDC to 52-54VDC necessary for PoE+ & up (30W-90W)
- Hardened-grade for non-ventilated and harsh environments

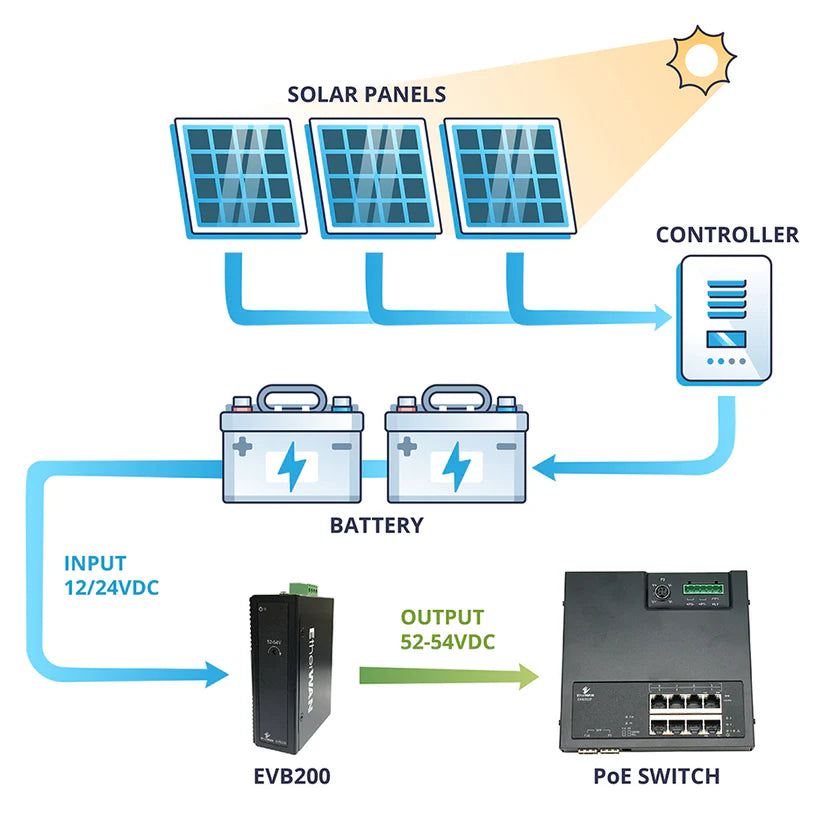

- Perfect for solar and traffic cabinet applications where 12-24VDC is used
- Wide operating temperature range -40 to 75°C (-40 to 167°F)
- High impact, thermal shock, and electrical noise resistance
- Fanless operation
Specifications
Specifications
Etherwan Systems - EVB200 - Specifications
| Casing Material | Rugged Metal |
|---|---|
| IP Rating | IP30 |
| Dimensions | 32mm x 81.5mm x 103.5mm |
| Installation | DIN-rail or wall mount |
